Electric heating Master B 30 EPR
Product description
Electric heating Master B 30 EPR
Electric heaters can be used in a wide range of applications. They are efficient, provide clean and safe heat quickly and are best suited for temporary heating as they are mobile and easy to use. Master electric fan heaters are very reliable and powerful thanks to high-quality construction components.
Features
Model description
- Connection to flexible cable possible
- Easy transport thanks to large transport wheels
- Mains cable included
- Crane eyes for easy transport
- Manual reset
- Connection of an additional room thermostat possible
- No oxygen consumption
- Odourless, no exhaust gases, no condensation water
- Winter-summer switch (ventilation mode)
- Low noise level
- Motor with thermal protection
- Overheating thermostat
- Built-in thermostat

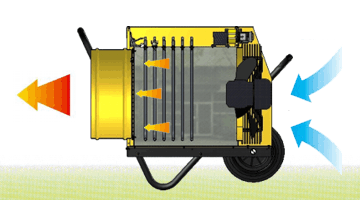

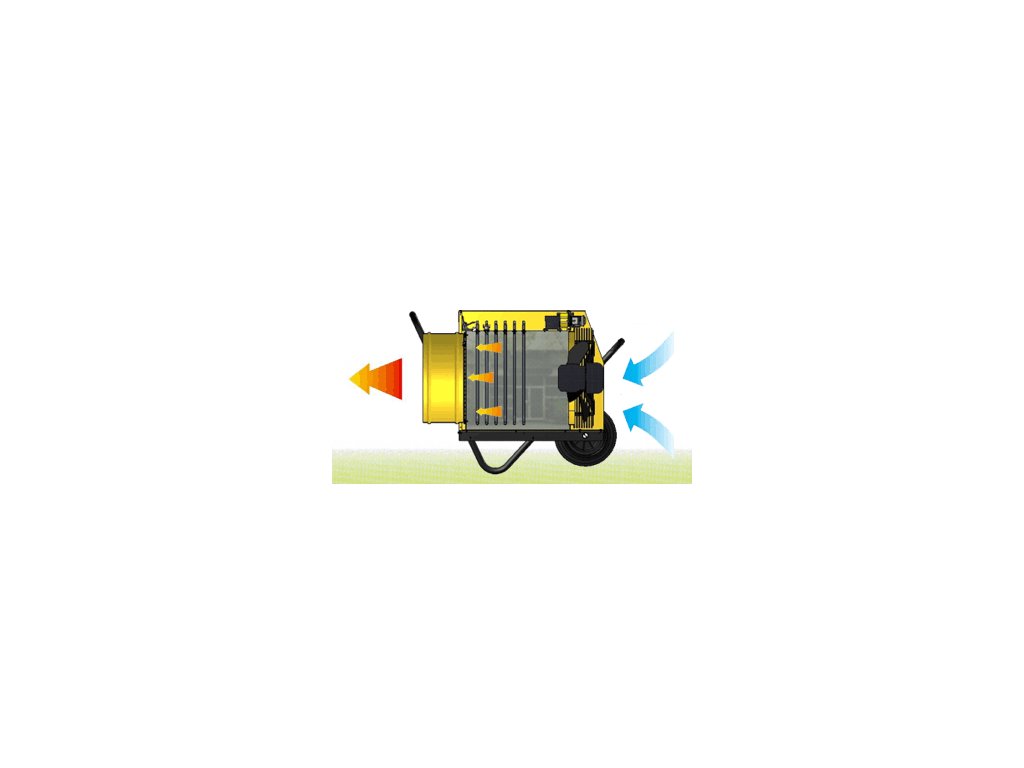

How it works?
Electric heaters - Air flow
|
Air flow rate:
3.500 m3/h |
Energy consumption:
43,5 A |
Switching possible. 1:
OFF |
Unit dimensions (L x W x H):
1030 x 580 x 680 mm |
|
Mains voltage:
3~ 400/50 V/Hz |
Heat range:
< 25 °C |
Switching possible. 2:
Ventilator |
Dimensions (L x W x H):
1050 x 600 x 820 mm |
|
Thermostat control:
optional TH5 |
Protection class:
IP24 |
Switching possible. 3:
15,0 kW |
Net / Gross weight:
53 / 63 kg |
|
Connection plug on the side of the fan heater:
63A / 5P |
Switching possible. 4:
30,0 kW |
Pallet:
1 Pieces |
|
Additional parameters
| Brand | Master |
|---|---|
| Category: | Heating system |
| Weight: | 63 kg |
| Heizleistung, kW: | 15/30 |
| Heizleistung, Btu/h: | 51.200-102.400 |
| Heizleistung, kcal/h: | 12.900-25.800 |
| Luftleistung, m³/h: | 3.500 |
| Netzspannung, V/Hz: | 400/3ph/50 |
| Anschlussbuchse auf der Seite des Heizlüfters: | 63A/5P |
