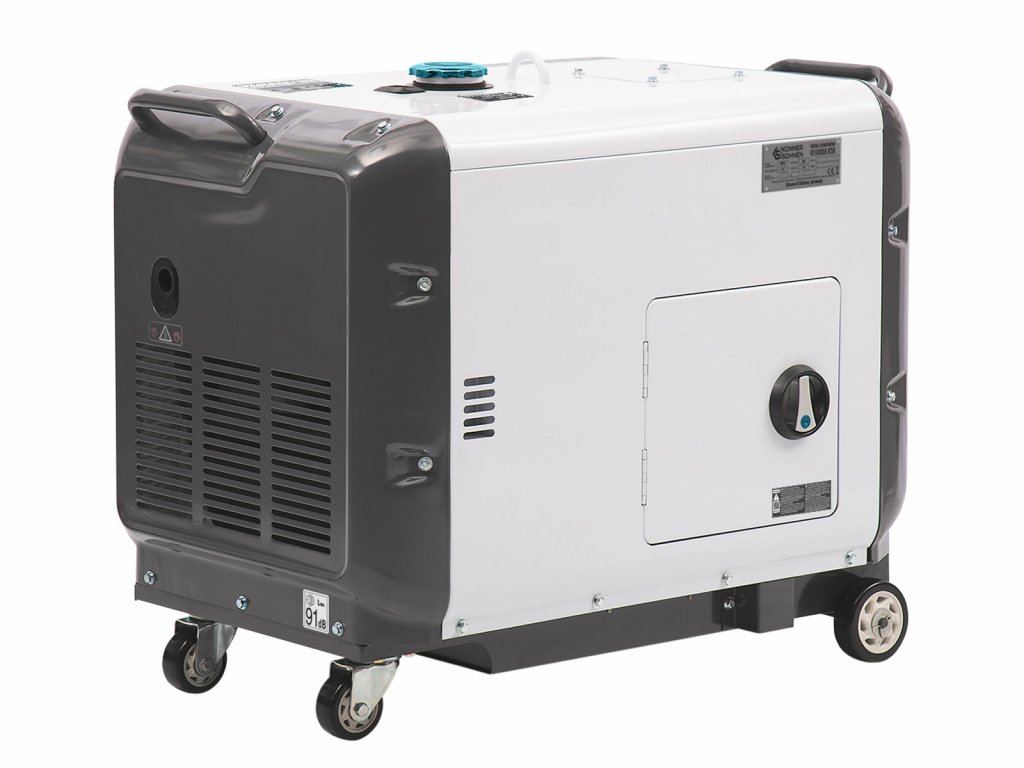

The KS 9300DE-1/3 ATSR Super S diesel generator is ideal for use in areas where there are frequent power interruptions. It is equipped with an ATS output for connecting an automatic transfer switch (ATS) that allows automatic start-up in the event of a power interruption, which is advantageous for use in the private sector as well as in agriculture (farms, greenhouses, warehouses), in administrative and educational facilities and many others. It is essential that building power systems are equipped with an emergency power source that can supply lighting and ventilation systems as well as servers storing important information in the event of a failure of the main grid.
Könner & Söhnen Diesel Generator KS 9300 DE 1/3 ATSR SUPER S (EURO V)
Voltage | 230 V / 400 V |
Maximum power | 6,5 / 7,5 KW |
Nominal power | 6,0 / 7,0 KW |
Power output | 18 hp |
Battery | 30 Ah |
Engine start | Electric |
Engine type | Diesel |
Sockets | 1x32A, 1x16A |
Engine oil capacity | 1,65 l |
Net weight | 168 kg |
Frequency | 50 Hz |
Könner & Söhnen Diesel Generator KS 9300 DE 1/3 ATSR SUPER S (EURO V)
HIGH PERFORMANCE ENGINE
Every "Könner & Söhnen" motor has a power reserve. The high-performance engines of the "Könner & Söhnen" brand are sure to deliver the specified power! An automatic gain control (AVR) is used in Könner & Söhnen diesel generators. It ensures a constant output voltage of 230 V and is equipped with a short-circuit protection system.
VTS SYSTEM
Unique innovative VTS phase switching system allows the generator to be used in either three-phase (400 V) or single-phase (230 V) mode with virtually no loss of power.
ATS CONNECTION
The generator is equipped with a 6-pin connection socket for connecting an ATS system. The ATS unit (automatic transfer to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted and automatically stops the generator when the main power supply is restored.
INCREASED ENGINE LIFE
HEAVY DUTY diesel generators are not only suitable as a back-up power source, but also for full continuous operation. The engine life is more than 3000 operating hours, which is confirmed by multi-hour or -stage tests and a warranty. However, the motors are of course as powerful as this when properly operated and routinely maintained.

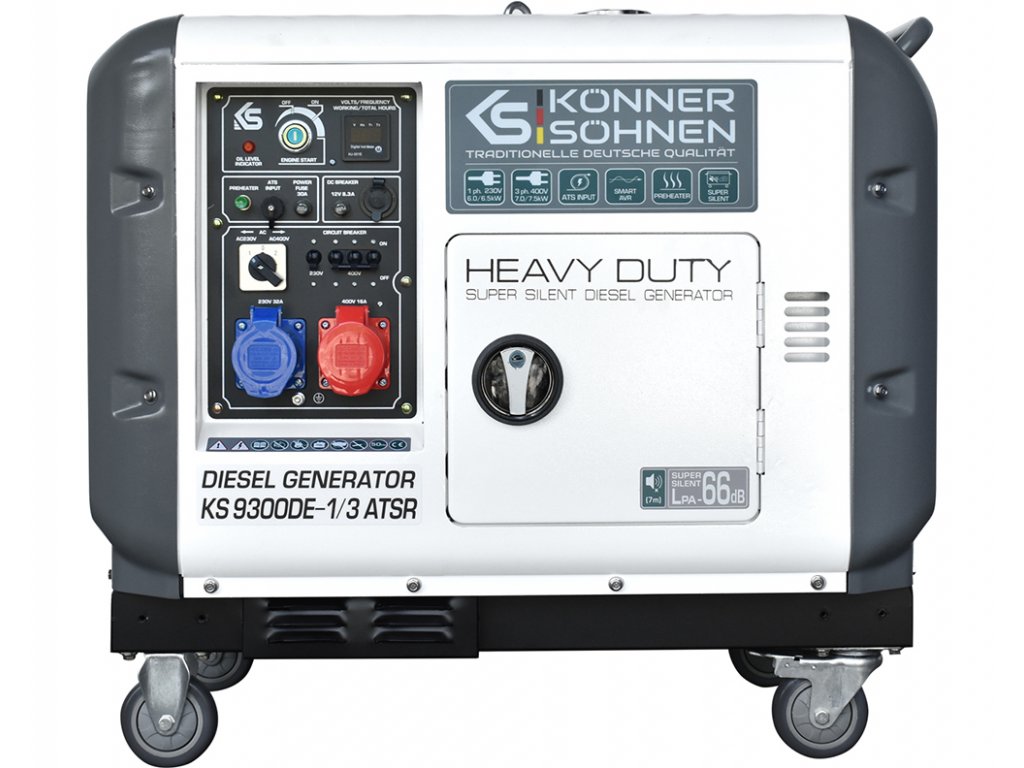

USER-FRIENDLY ERGONOMIC CONTROL PANEL
The user-friendly ergonomic control panel allows you to easily operate the entire group, requiring no additional skills. A modern intelligent LED display will always show you the operating hours, frequency or voltage values. The information displayed will help you to properly assess the charge on the unit and perform the maintenance of the generator on time, thus extending the life of the unit.
PREHEATER
All HEAVY DUTY diesel generators are equipped with a preheating function (PREHEATER), which allows you to start the generator effortlessly in winter.
VANDAL-PROOF SOUND-PROOF HOUSING
The generator is equipped with a vandal-proof housing with better heat distribution inside, which ensures a longer service life of the unit
Additional parameters
Category: | Diesel |
---|---|
Warranty: | 2 years |
Weight: | 180 kg |
Betriebsspannung: | 230/400 |
Höchstleistung, kW: | 6,5 / 7,5 |
Nennleistung, kW: | 6,0 / 7,0 |
Strom, A (max): | 28.26 / 13.54 |
Steckdosen: | 1x32A (230 V) 1x16A (400 V) |
Laufzeit bei der Belastung 50%, h: | 8,3 |
LED-Anzeige: | Betriebsstundenzähler, Laufstunden, Frequenz, Spannung in Volt |
Geräuschpegel Lpa (7m)/Lwa, dB: | 66/91 |
Steckdose 12V, A: | 12/8,3 |
Typ des Motors: | Diesel 1-Zylinder, 4-Takt mit Luftkühlung |
Modell des Motors: | KS 520HD-V |
Motorleistung, PS/kW: | 18,0/13,24 |
Vorwärmungsfunktion: | Ja |
Volumen des Kraftstoffbehälters, l: | 20 |
Motoröl-Füllmenge, l: | 1,65 |
Hubraum, cm3: | 498 |
Spannungsregler: | Intelligentes AVR-System |
Anlasser: | Elektro |
Batterie, Ah: | 30 |
ATS Anschluss: | Ja |
Abmessungen Netto (LxBxH), mm: | 920x580x860 |
Nettogewicht/Bruttogewicht, kg: | 168/180 |
Schutzklasse: | IP23M |
Schieflastfähig: | Nein |
Kraftstoff: | DIESEL (kein Heizöl !!! ) |
