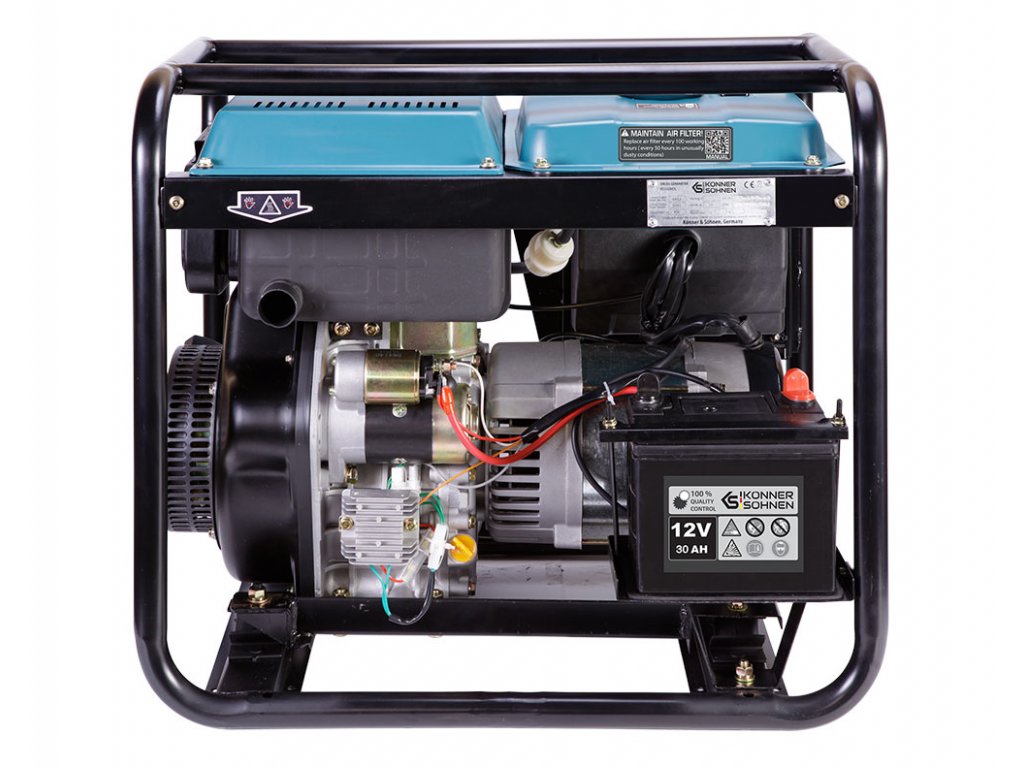

Könner & Söhnen Diesel Generator KS 9100HDE 1/3 ATSR (EURO V)
| Voltage | 230/400 V |
| Maximum power/ Nominal power 230V |
6.4/5.9 kW |
| Maximum power/ Nominal power 400V |
7.5/7.0 kW |
| Power output | 18 hp |
| Battery | 30 Ah |
| Engine Start | Manual/Electric |
| Engine type | Diesel |
| Sockets | 1x32A (230V), 1x16A (400V) |
| Hausing volume | 1.65 l |
| Net weight | 122 kg |
| Frequency | 50 Hz |
Könner & Söhnen Diesel Generator KS 9100HDE 1/3 ATSR (EURO V)
ADDITIONAL ACCESSORIES
The generator is equipped with additional accessories: the transition plug 2P+PE 16 A 230 V, transition plug 2P+Е 32 A 230 V, open-end spanner 8×10 mm, open-end spanner 12×14 mm, open-end spanner 17×19 mm, offset screwdriver 6.0 mm, РН2.

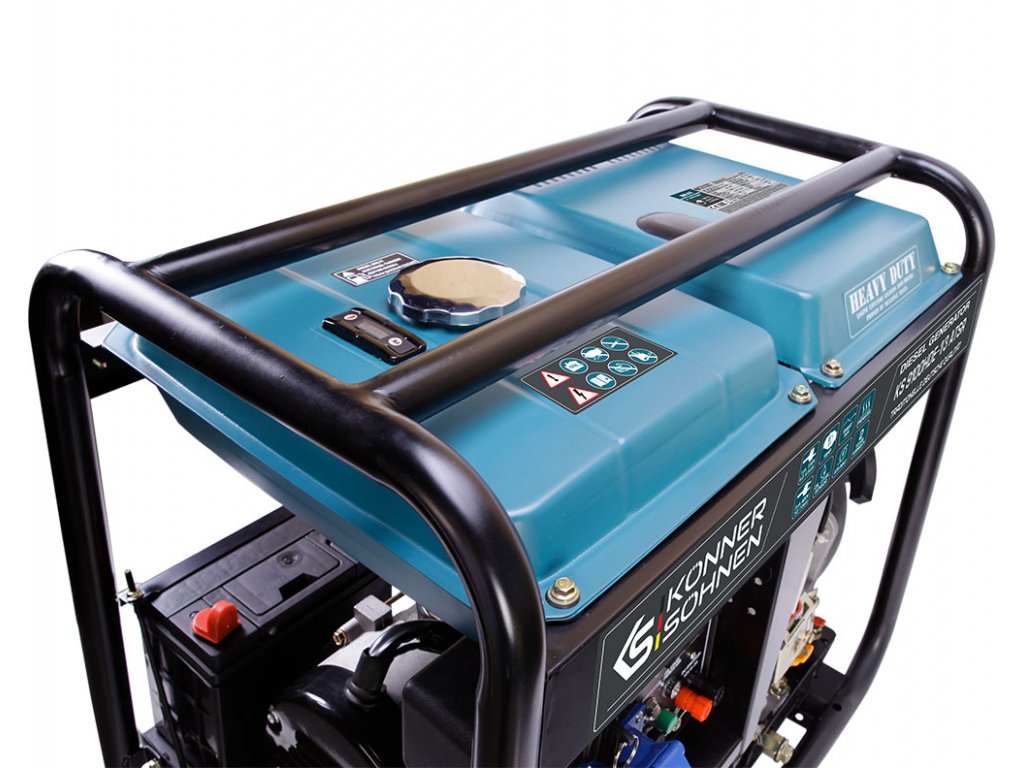

FRAME REINFORCEMENT
Thanks to the additional frame reinforcement with the upper protection strips, the HEAVY DUTY generator of professional series can be operated in heavy duty conditions. Furthermore, the frame construction ensures the fuel tank additional protection against damage during operation and transport.
BRAND ENGINES
Just as for petrol generators, engines for diesel generators are manufactured under licence from DIMAX Int. and carry their own brand and logo. For all models, the power reserve of the engine compared to the generator allows it to produce the specified voltage and keep it stable over the entire voltage range. All engines are tested for long continuous operation and then dismantled and inspected for faults. Each engine and generator has an individual serial number. This allows us to monitor the production or service quality. The engines meet all world or European standards for quality, economy and environmental friendliness (especially for pollutant and noise levels).
ATS CONNECTION (not included in the scope of delivery)
The ATS unit (automatic transfer to emergency power) automatically starts the generator and transfers the load when the main power supply is interrupted and automatically stops the generator when the main power supply is restored.
KS ATS 4/63HD, KS ATS 1/40HD, KS ATS 3/18HD
INCREASED ENGINE LIFE
HEAVY DUTY diesel generators are not only suitable as a back-up power source, but also for full continuous operation. The engine life is more than 3000 operating hours, which is confirmed by multi-hour or -stage tests and a warranty. However, the motors are of course as powerful as this when properly operated and routinely maintained.
PREHEATER
All HEAVY DUTY diesel generators are equipped with a preheating function (PREHEATER), which allows you to start the generator effortlessly in winter.
USER-FRIENDLY ERGONOMIC CONTROL PANEL
The user-friendly ergonomic control panel allows you to easily operate the entire group, requiring no additional skills. A modern intelligent LED display will always show you the operating hours, frequency or voltage values. The information displayed will help you to properly assess the charge on the unit and perform the maintenance of the generator on time, thus extending the life of the unit.
AVR
HEAVY DUTY generators of the Könner & Söhnen series are equipped with an intelligent AVR voltage stabilisation system. It makes it possible both to maintain the generator's output voltage at a constant value of 230 W and to protect the generator from unwanted short circuits and overloads.
RUBBER PADS FOR FRAME PROTECTION
For all Könner & Söhnen diesel generators, the additional rubber pads (included in the delivery) ensure corrosion protection. Thanks to the pads, no floor covering or frame paint will be damaged when the generator is working. A transport kit is also available.
Accessories can be purchased:
Automatic battery charger
User-friendly compact automatic battery charger for charging generator batteries.
The battery charger is protected against:
• Overheating
• Short circuit
• Reversed Polarity
• Overcharging of the battery
KS EX3M-4S
Socket adapter
KS CR-25M
Extension cable
Könner & Söhnen 10W-30
High quality semi-synthetic multigrade engine oil ULTRA Performace from "Könner & Söhnen" for petrol and diesel engines.
Additional parameters
| Category: | Diesel |
|---|---|
| Weight: | 122 kg |
| Spannung, V: | 230 / 400 |
| Höchstleistung/Nennleistung 230V, kW: | 6.4/5.9 |
| Höchstleistung/Nennleistung 400, kW: | 7.5/7.0 |
| Frequenz, Hz: | 50 |
| Strom, A (max): | 27.83 / 13.54 |
| Steckdosen: | 1x16A(400V), 1x32A(230V) |
| Laufzeit bei der Belastung 50%, h: | 11 |
| LED-Anzeige: | Spannung in Volt, Frequenz, Zähler Laufstunden |
| Geräuschpegel Lpa (7m)/Lwa, dB: | 71 / 96 |
| Ausbeute 12 V, A: | 12 / 8.3 |
| Modell des Motors: | KS 520HD |
| Typ des Motors: | Typ des Motors Diesel 1-Zylinder, 4-Takt mit Luftkühlung |
| Motorleistung, PS,kW: | 18.0/13.24 |
| Kurbelgehäusevolumen, l: | 1.65 |
| Motorvolumen, cm3: | 498 |
| Spannungsregler: | Intelligentes AVR-System |
| Anlasser: | Hand / Elektro |
| Leistungszahl, cosφ: | 1.0 / 0.8 |
| Durchmesser des Rahmens: | 32mm, Runde |
| Batterie, Ah: | 30 |
| ATS Anschluss: | + |
| Vorwärmungsfunktion: | + |
| Abmessungen Netto (L*B*H), mm: | 730×495×630 |
| Abmessungen Brutto (L*B*H), mm: | 750×520×660 |
| Nettogewicht, kg: | 122 |
| Bruttogewicht, kg: | 130 |
| Strichcode: | 4260405362288 |
| Volumen des Kraftstoffbehälters,: | 11l |
| Schieflastfähig: | Nein |
| Kraftstoff: | Diesel (kein Heizöl !! |
