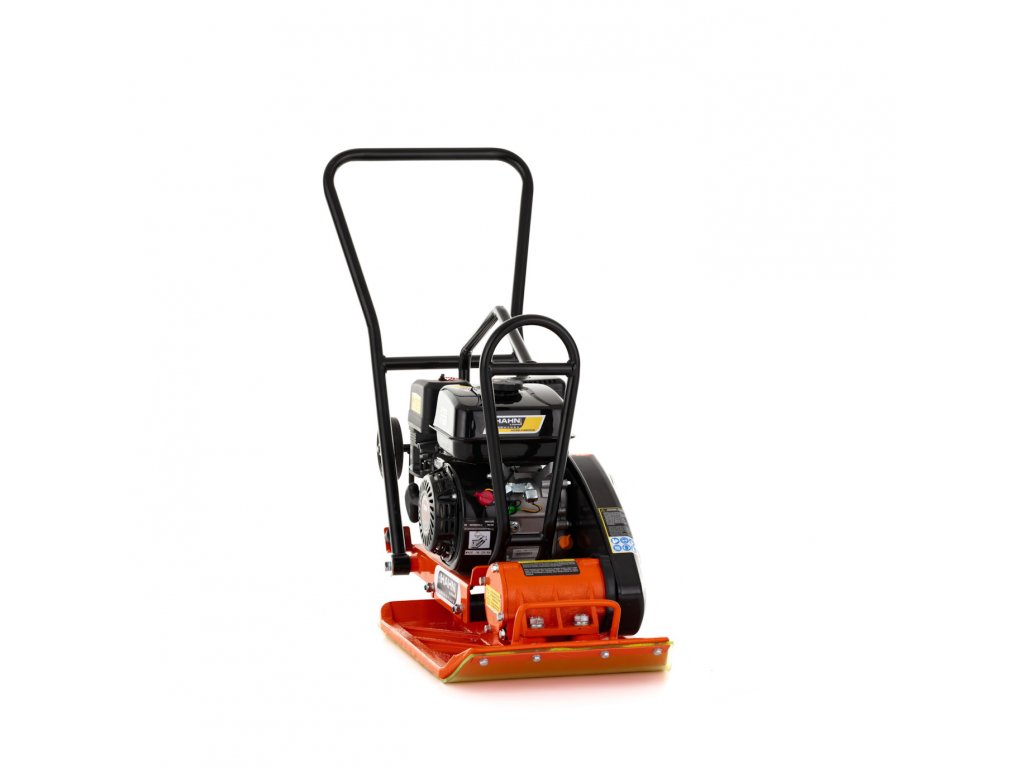

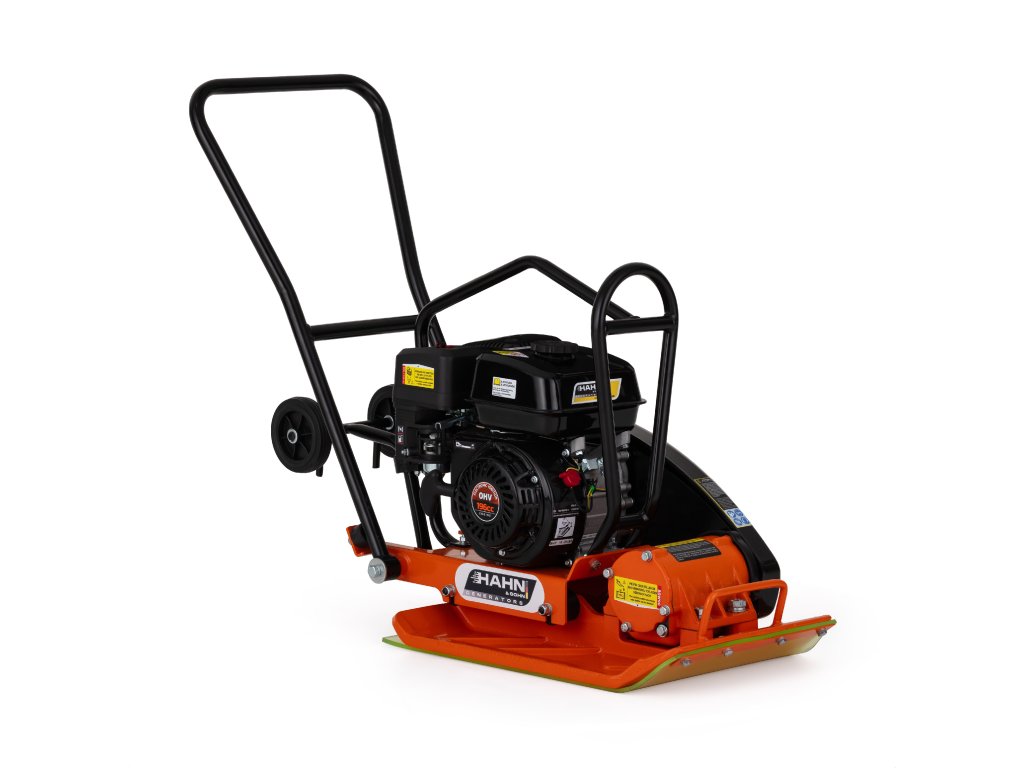

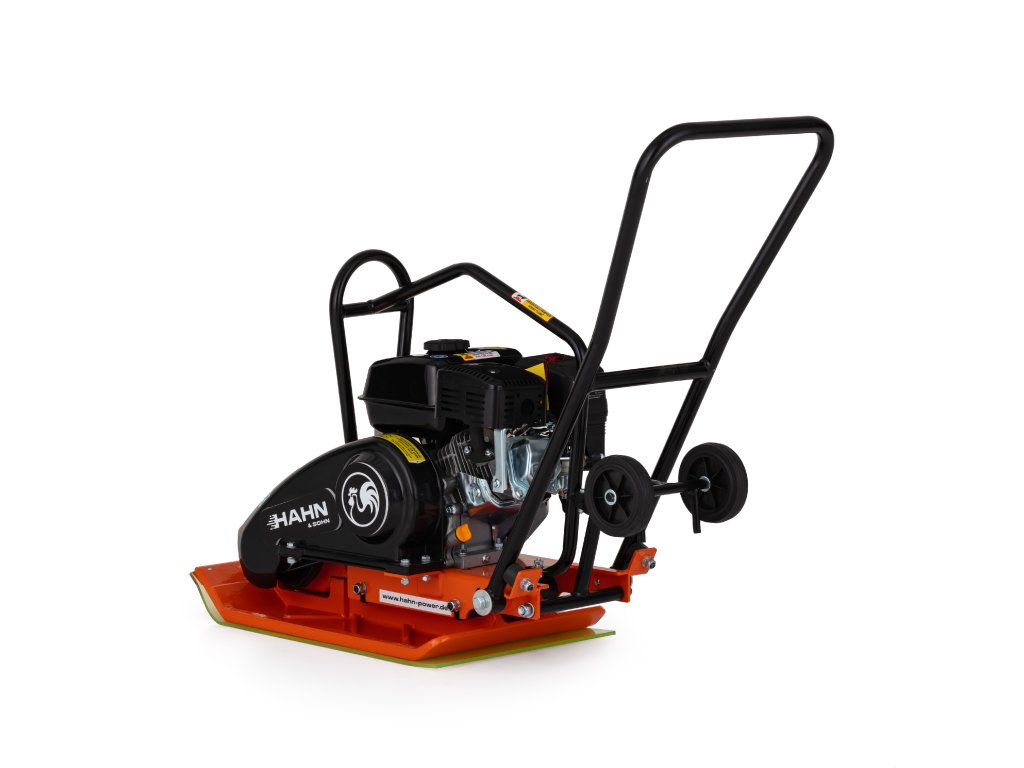

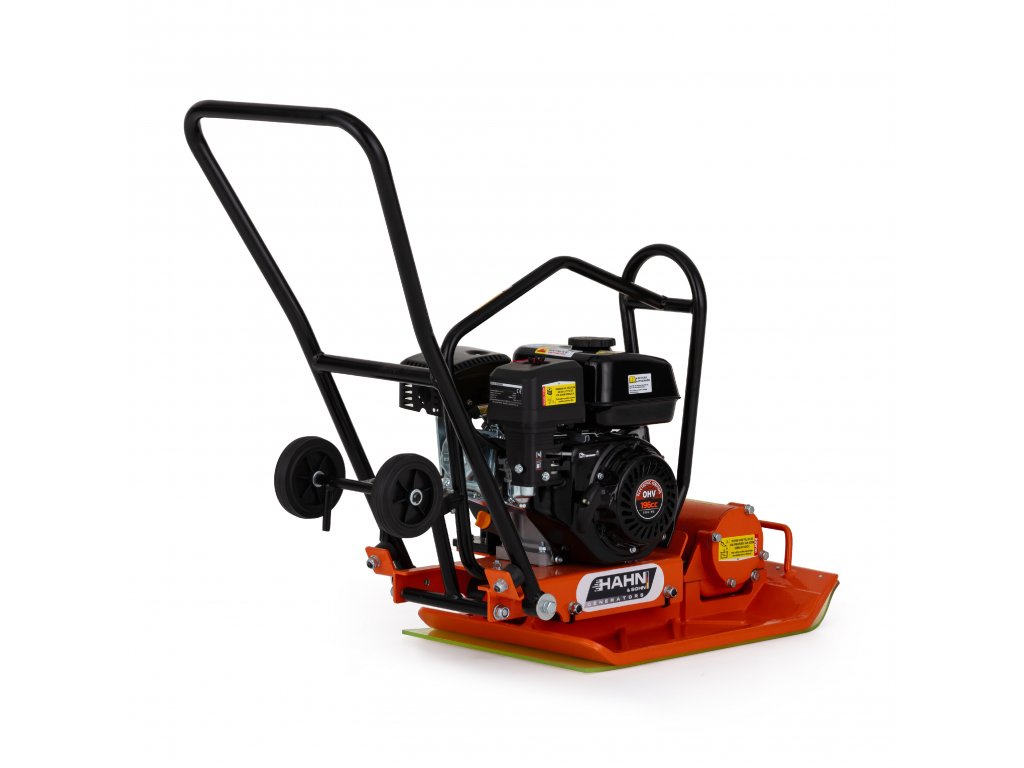

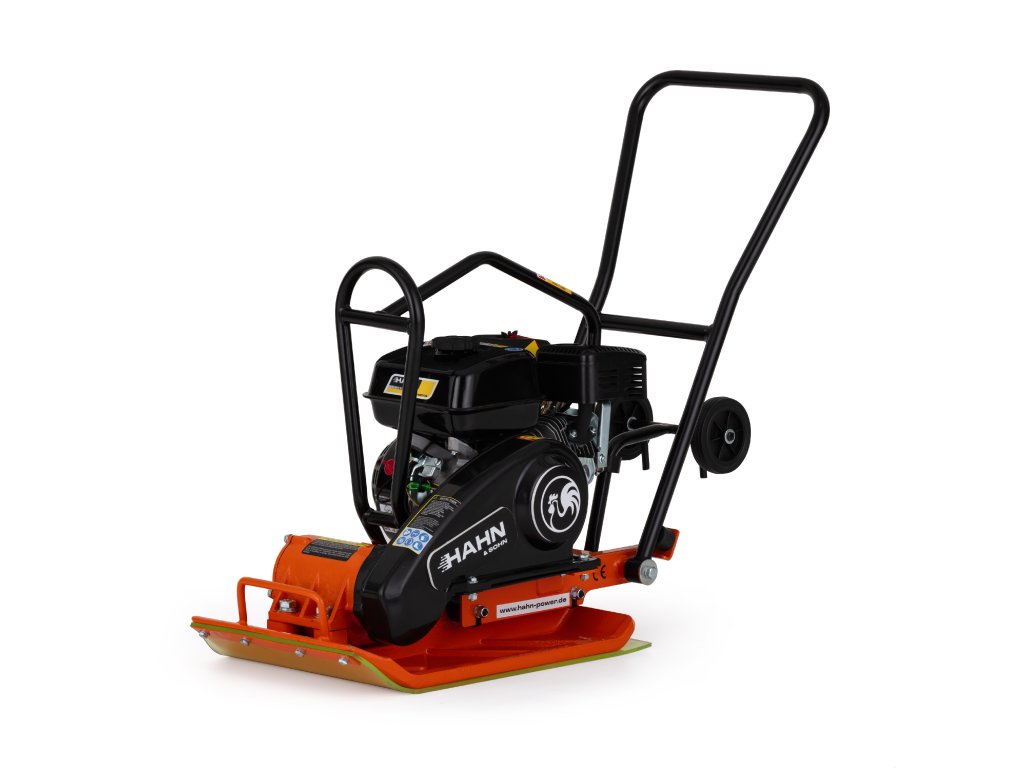

Hahn&Sohn Vibrating plate HC85-HG200G
Weight: 86 kg
Max. Engine power: 4,2 kW / 5.7 HP
Nominal power: 3,8 kW / 5.1 HP
Lift volume: 196 cm³
Fuel: Unleaded gasoline (ROZ 95)
Hahn&Sohn Vibrating plate HC85-HG200G
Vibrating plates are among the most heavily loaded construction machines, which is why we focus on simple and solid construction solutions in our production. The most popular model in our range, the HC85, is based on a solid vibrating plate for hard work and a durable motor with an maximum output of 4.2 kW.
- Vibrating plate suitable for compacting a wide range of substrates

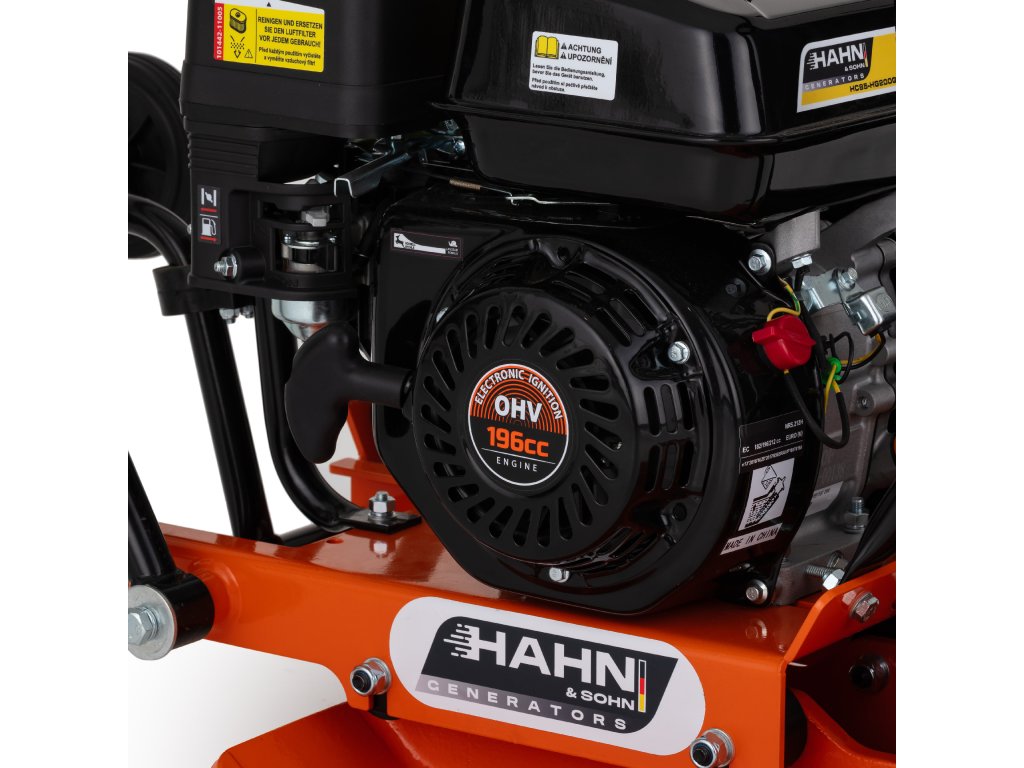

- Reliable, powerful gasoline engine

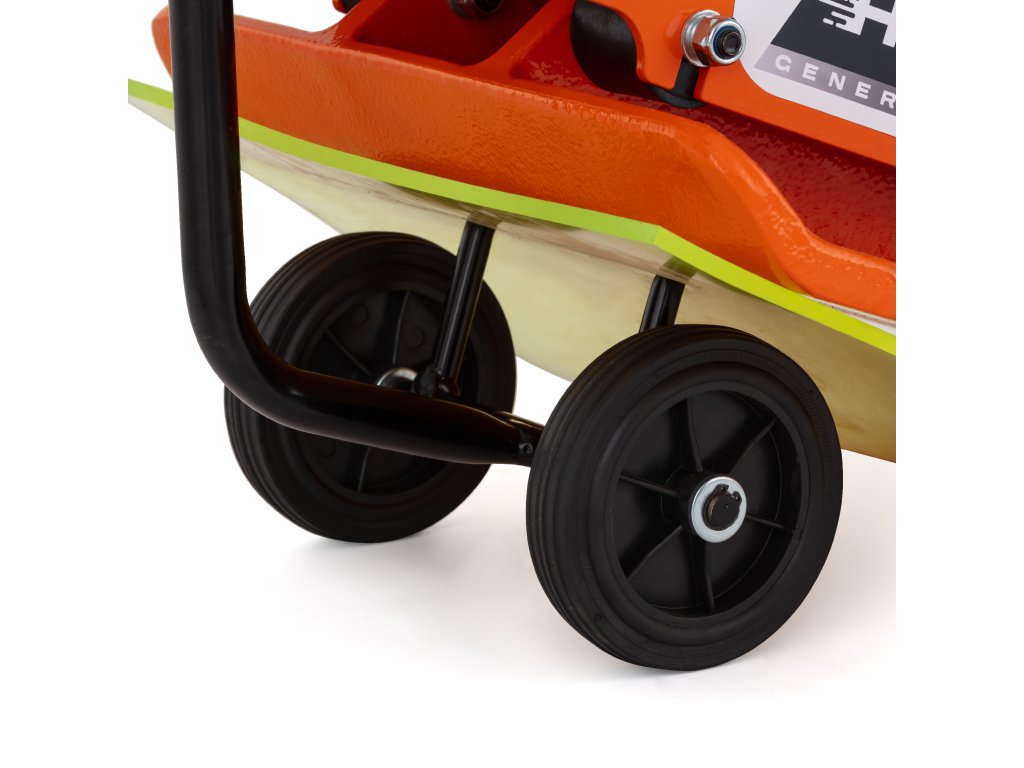

- Ergonomic handle ensures smooth and easy transport
- Vibration protection to protect the motor and for a long service life
- Additional elastometer for compacting paving stones
Additional parameters
| Category: | Wacker plates & Vibrating tamper |
|---|---|
| Weight: | 86 kg |
| Gewicht: | 86 kg |
| Stoß-/Vibrationsfrequenz: | |
| Zentrifugalkraft: | 20 kN |
| Maximale Performance: | 288 m²/h |
| Abmessung der Platte: | 600x400 mm |
| Bewegungsgeschwindigkeit: | ⩽30 cm/s |
| Gesamtabmessungen: | 362x312x335 mm |
| Motor: | Einzelzylinder Benzinmotor |
| Maximales Drehmoment: | 12.4 Nm / 2500 rpm |
| Maximale Leistung: | 4,2 kW / 5.7 HP |
| Nennleistung: | 3,8 kW / 5.1 HP |
| Hubraum cm³: | 196 cm³ |
| Motortyp:: | 4-Takt, OHV, Benzinmotor |
| Maximaler Kraftstoffverbrauch: | |
| Tankvolumen: | 3,6 |
