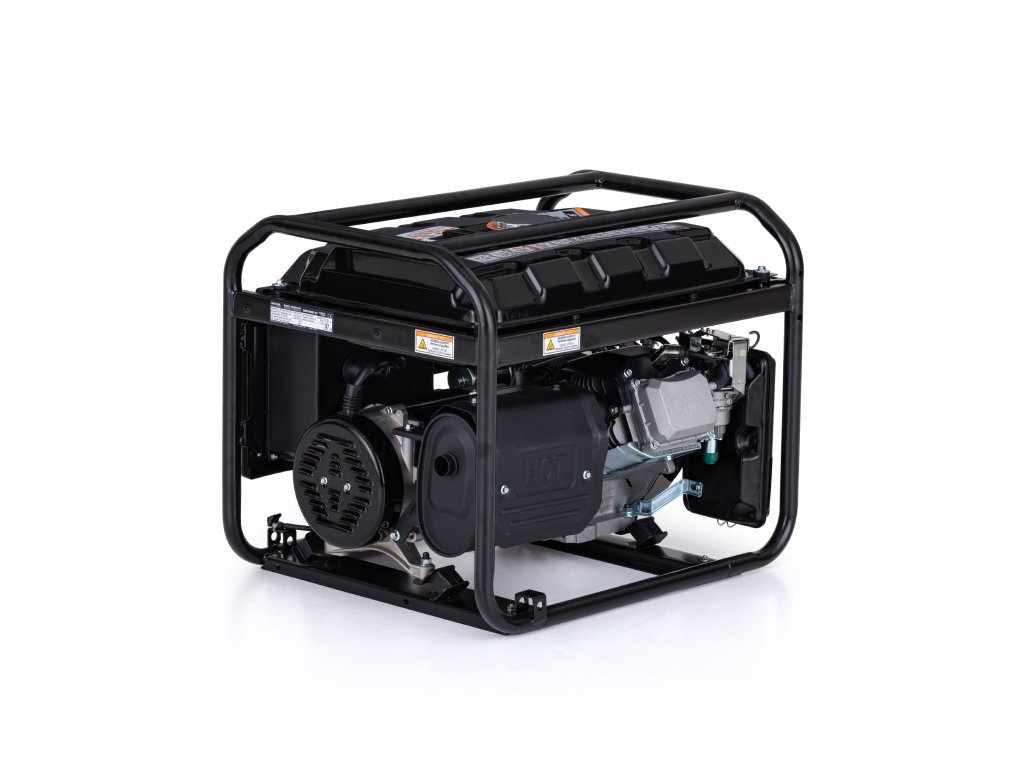

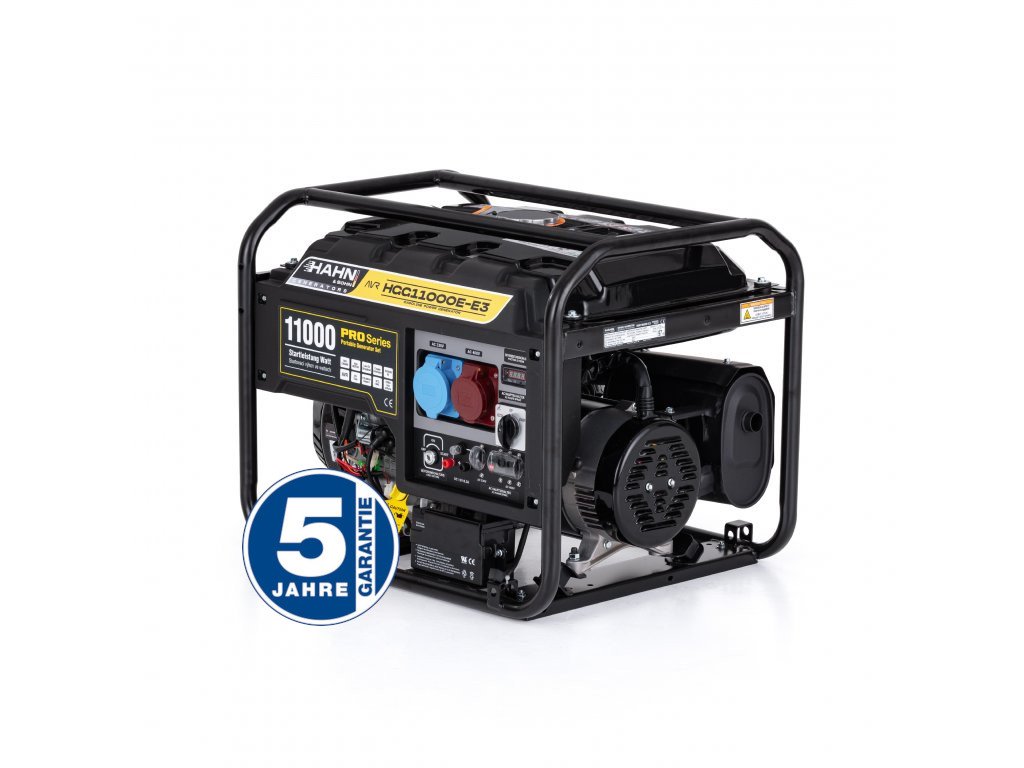

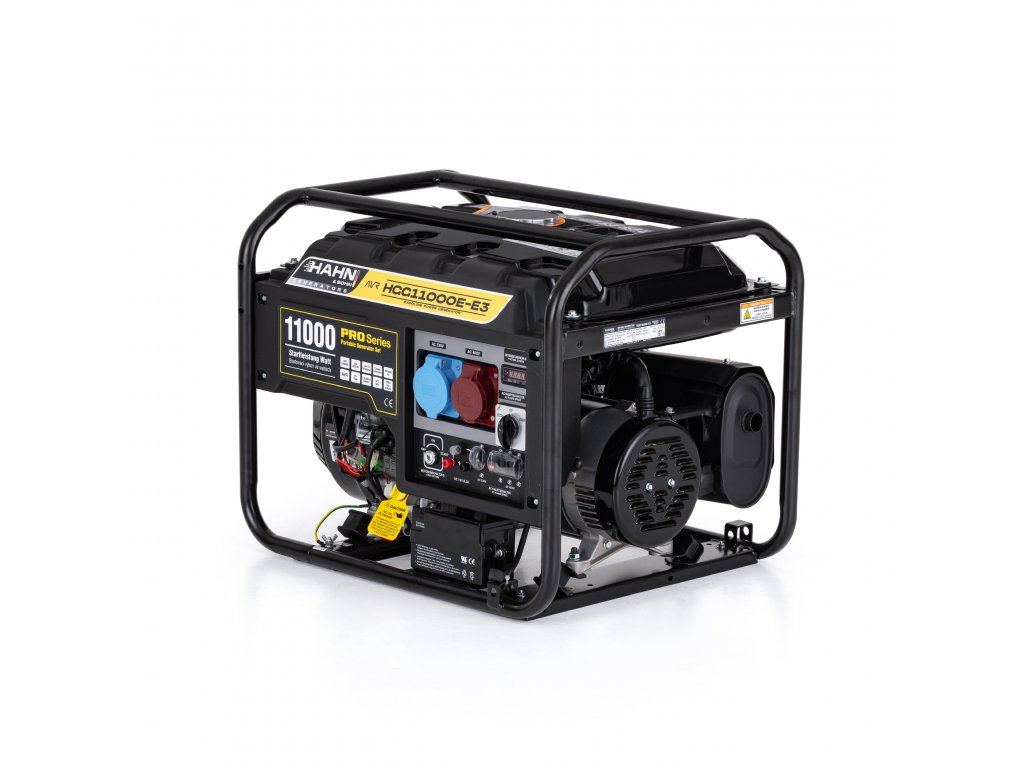

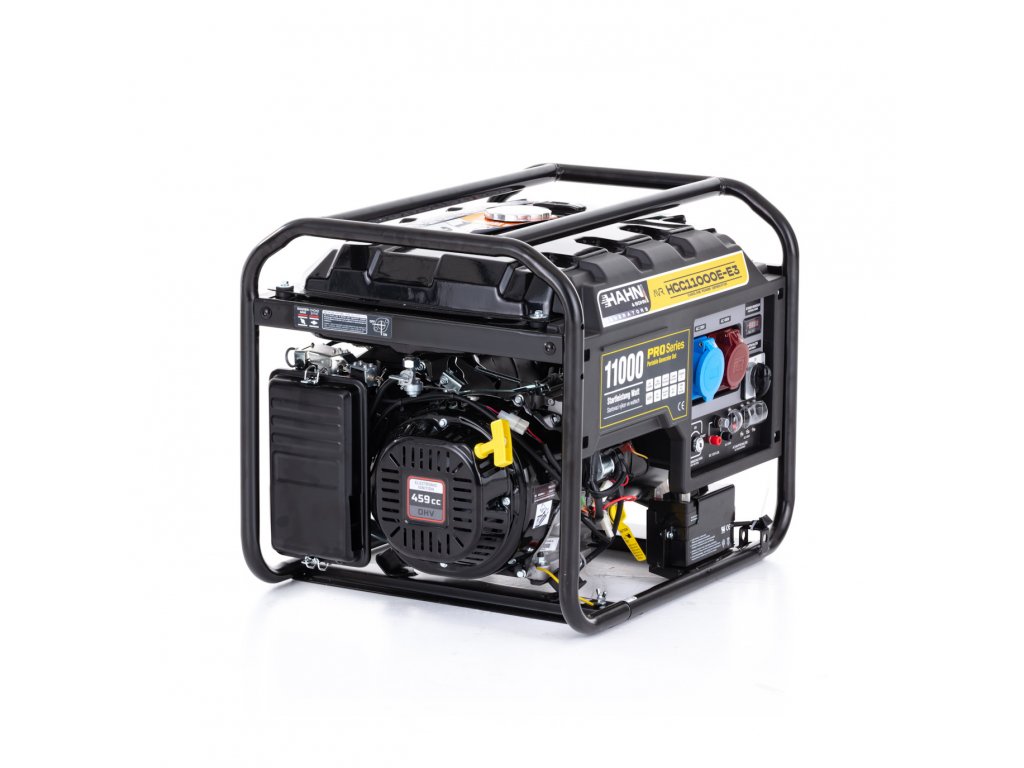

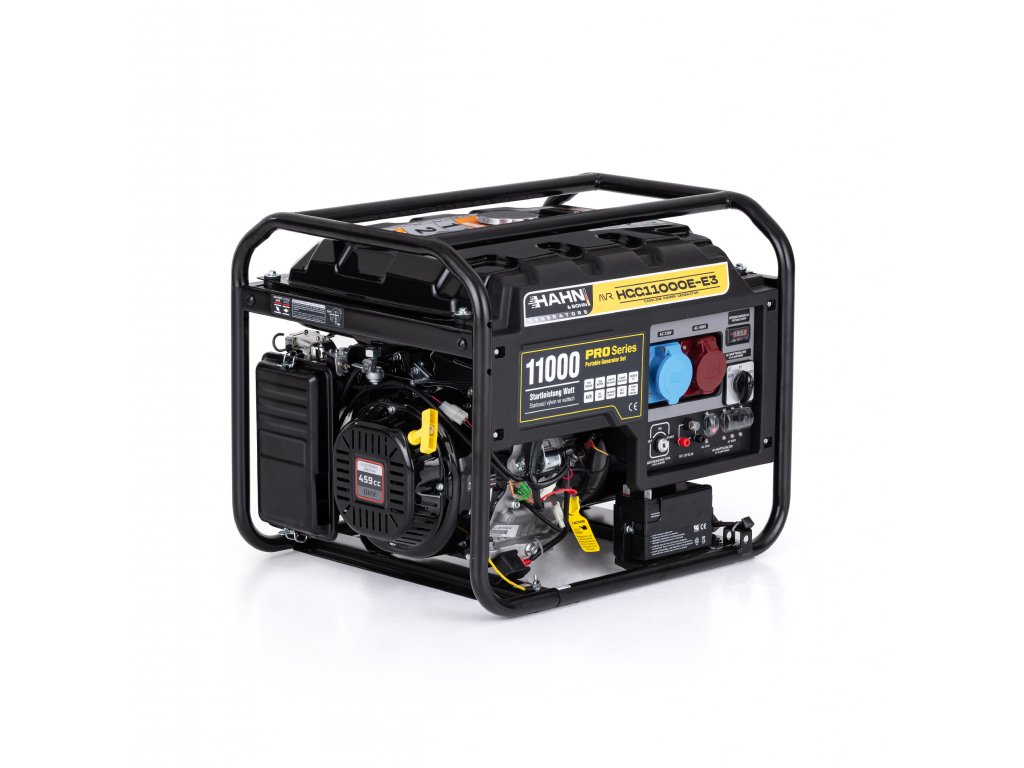

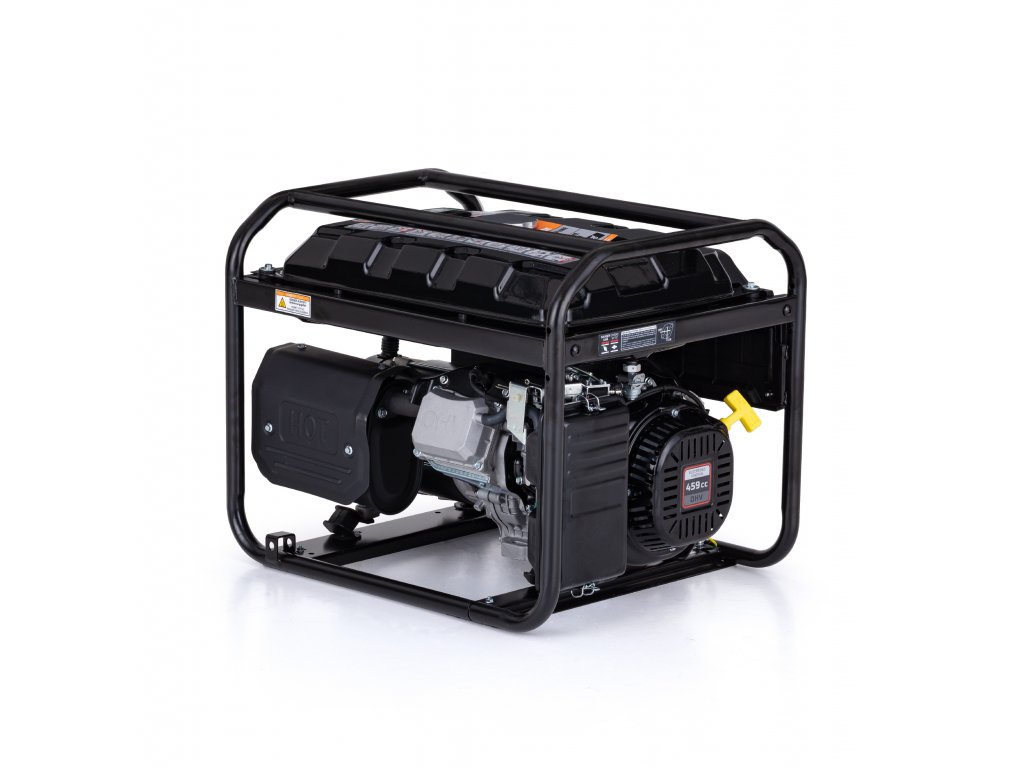

Hahn & Sohn Gasoline Generator HGG 11000E-E3
Maximum power 230V: 8.5 kVA / 8.5 kW
Maximum power 400V: 10.6 kVA / 8.5 kW
Nominal power 230V: 8.0 kVA / 8.0 kW/
Nominal power 400V: 10.0kVA / 8.0kW
Output voltage: 230V / 400V
Voltage Regulation: AVR
Nominal current 230V: 34.8 A
Nominal current 400V: 14.4A
Hahn & Sohn Gasoline Generator HGG 11000E-E3 - 8,5 kW three-phase
The Hahn & Sohn HGG 11000E-E3 is a modern gasoline power generator that knows how to impress with its reliability and trouble-free operation. This makes the Hahn & Sohn HGG 11000E-E3 an all-rounder for construction sites, events, in agriculture or at home. The generator is also suitable for emergency power supply.
Hahn & Sohn HGG 11000E-E3 Description:
The air-cooled four-stroke engine has a large 25l tank, which allows long and trouble-free operation of up to 8 hours. The generator has manual and electric start and is three-phase - supplies 230V and 400V. The resulting output of 10.6 kVA / 8.5 kW (maximum output, 400V) and 10.0 kVA / 8.0 kW (rated output 400V) makes the generator a powerful companion.
Thanks to the automatic voltage regulator - AVR, voltage fluctuations - and thus possible damage to connected devices - are avoided. In this way, you can safely connect sensitive devices or consumers that start up with difficulty.
Hahn & Sohn HGG 11000E-E3 Features:
- Single-phase and three-phase operation possible
- Reliable gasoline engine that guarantees many years of trouble-free operation
- Robust, compact housing that facilitates transport and protects against damage
- Vibration isolation that dampens the vibrations of the device well, which translates into its durability
- AVR voltage stabilization system
- Large fuel tank
Additional parameters
| Category: | Gasoline |
|---|---|
| Warranty: | 5 Jahre |
| Weight: | 89 kg |
| Höchstleistung (230 V): | 8,5 kVA / 8,5 kW |
| Höchstleistung (400 V): | 10,6 kVA / 8,5 kW |
| Nennleistung (230 V): | 8,0 kVA / 8,0 kW |
| Nennleistung (400 V): | 10,0 kVA / 8,0 kW |
| Ausgangsspannung: | 230V / 400V |
| Frequenz: | 50-53 Hz |
| Nennstrom (230V/400V): | 29,8 A / 14,4 A |
| Anlasser: | Manuell + elektrisch |
| Tankvolumen: | 25 l |
| Laufzeit: ca.: | 8 h |
| Abmessungen: | 681x546x550 mm |

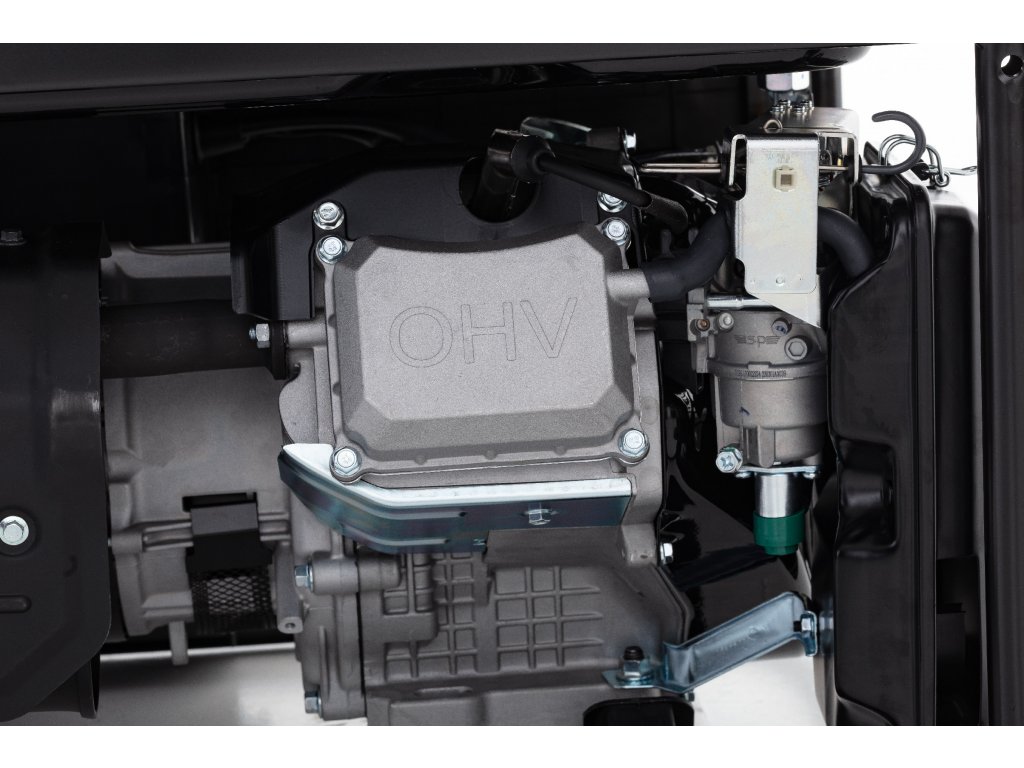

| Motor: | Benzinmotor, 4-Takt |
| Volumen des Öltanks: | 1,1 l |
| Geräuschpegel Lpa (7m)/Lwa, dB: | 71 / 96 |
| Schieflastfähig: | Nein |

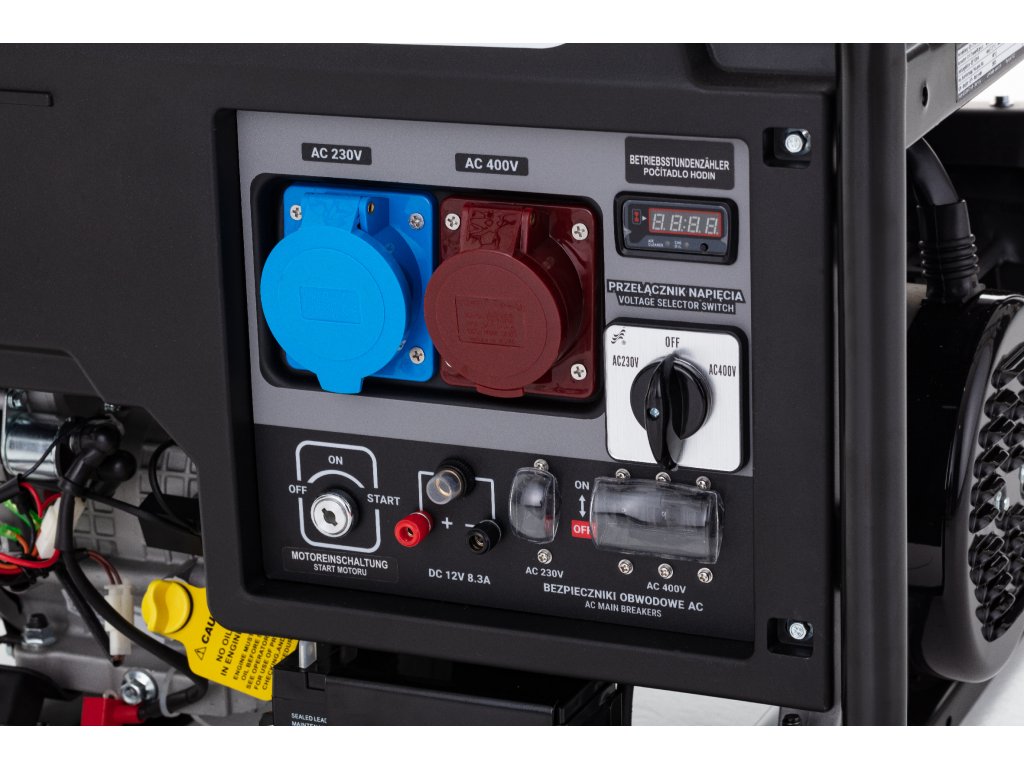

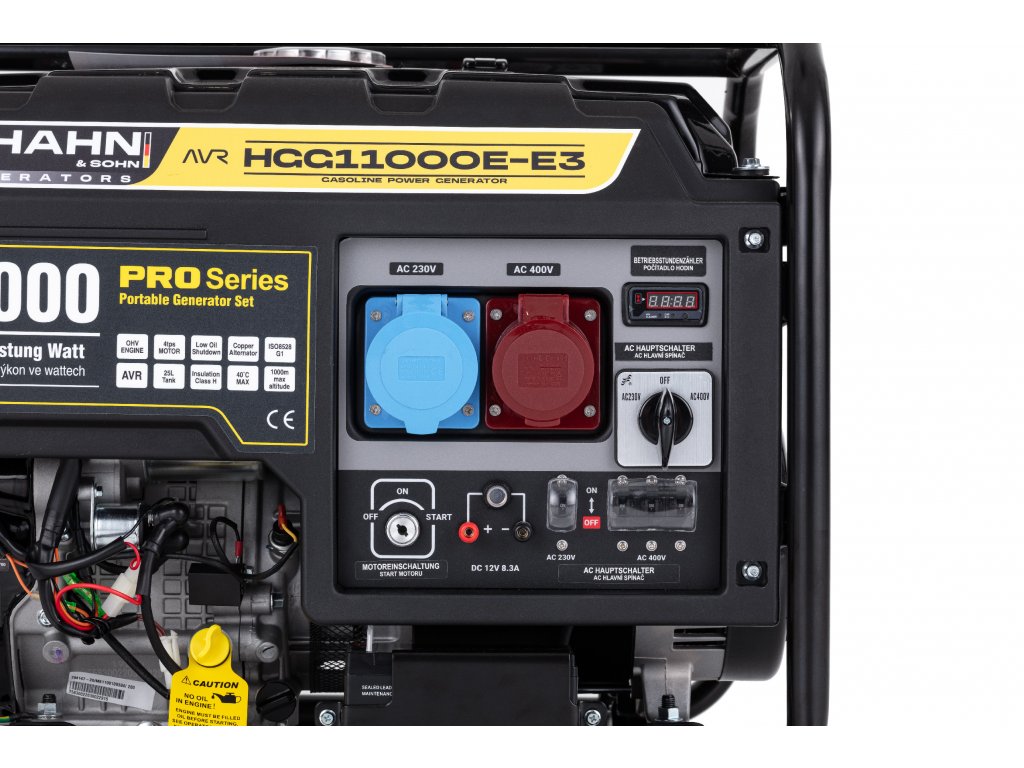

| Steckdosen: | 1x 230V (32A), 1x 400V (16A) |
