Hahn & Sohn Diesel Generator HDE200RST3-3

  • Maximum power: 198 kVA / 158 kW
  • Nominal power: 180 kVA / 144 kW
  • Output voltage: 230V/400V
  • Nominal current: 260 A.
Availability verfügbar in 12 Wochen
Code: 11313
30 159 € 24 924,80 € excl. VAT
Hahn & Sohn Diesel Generator HDE200RST3-3

Hahn & Sohn Diesel Generator HDE180RST3

PDE100RST3

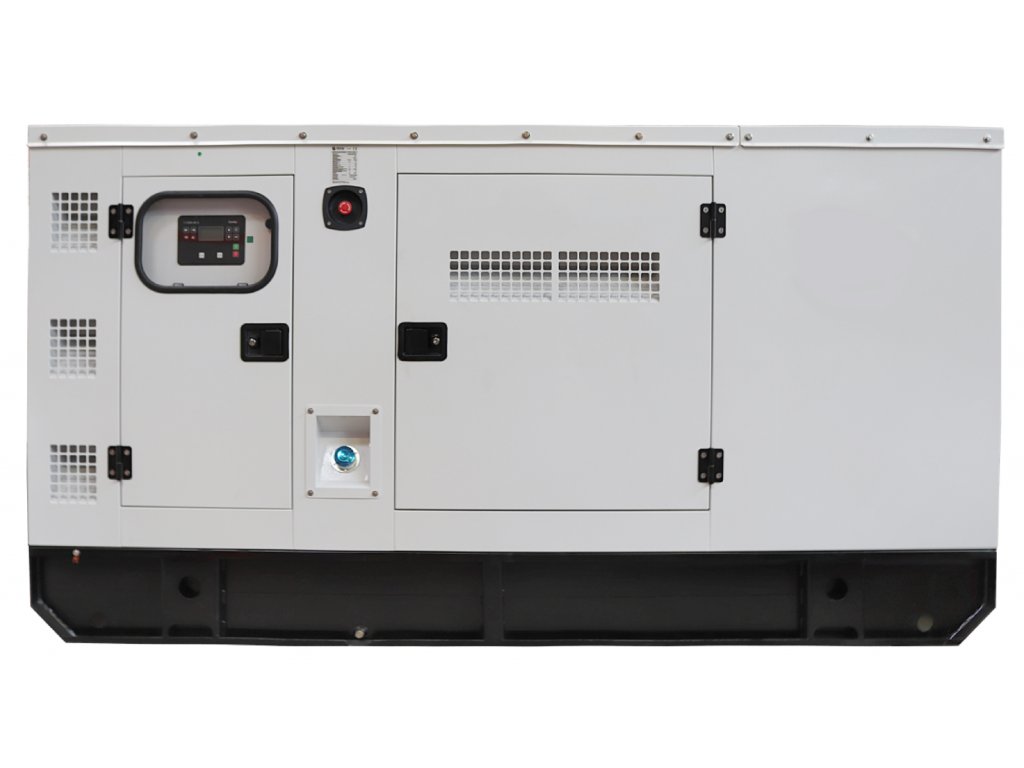

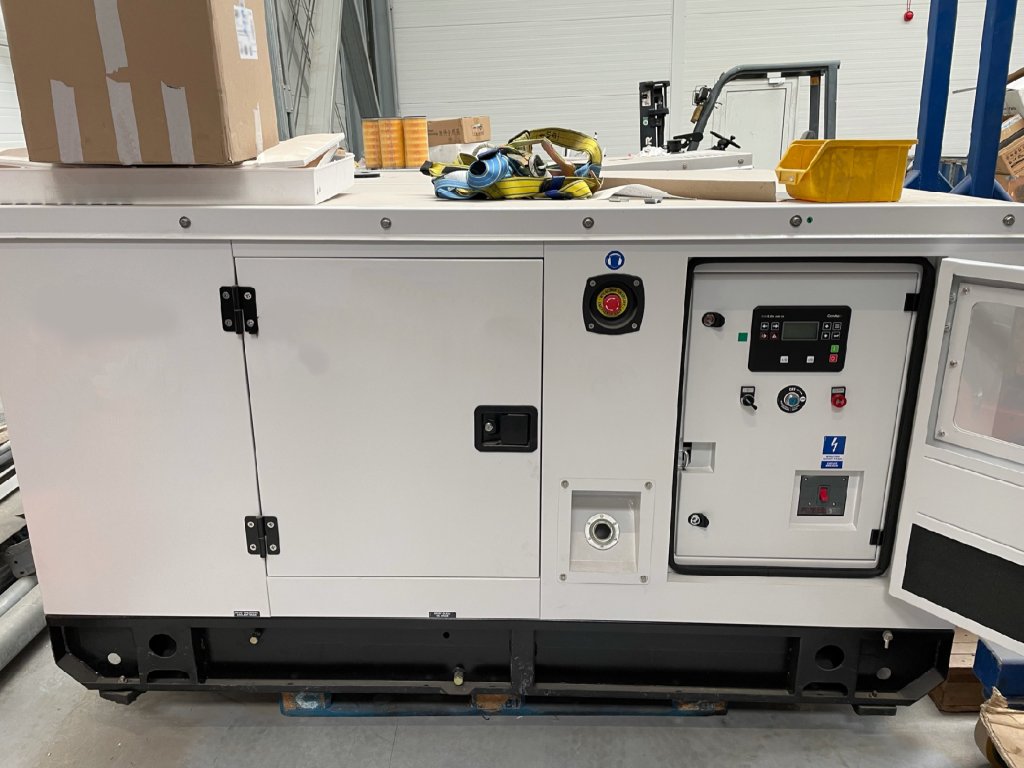

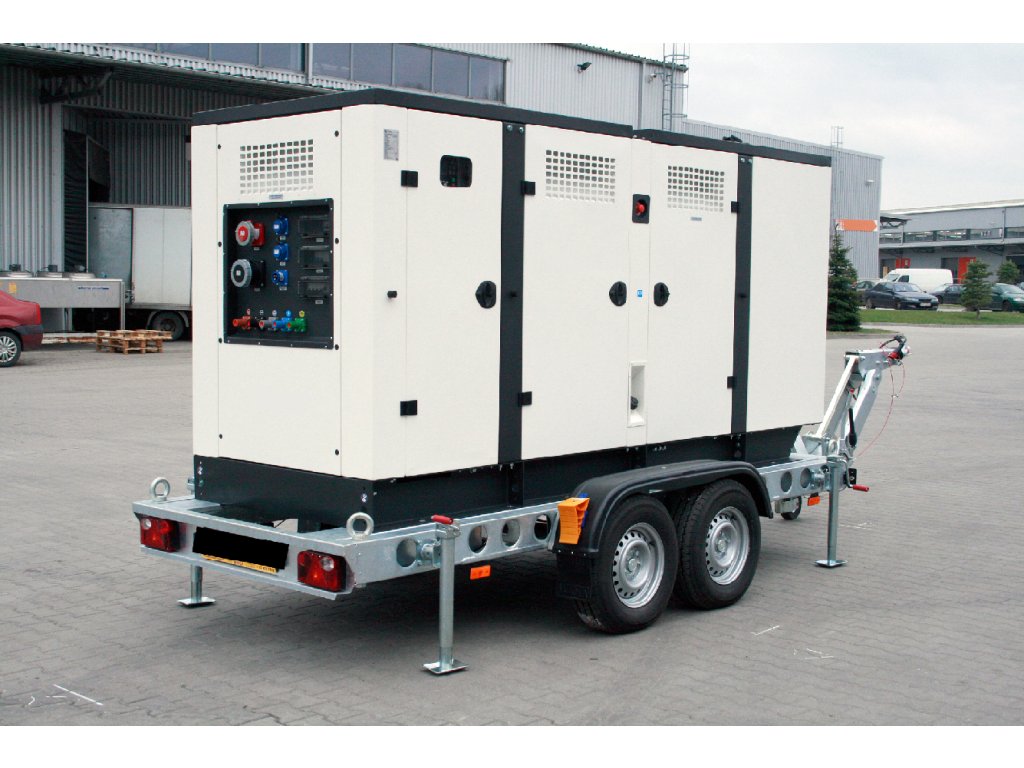

Pictures are for illustration only, these are different models. Basic version without drawers.

The Hahn & Sohn HDE180RST3 is a modern diesel generator that will impress you with its strong performance, reliability and trouble-free operation. The Hahn & Sohn HDE180RST3 is versatile for construction sites, events, agriculture or industrial applications. The generator is also suitable for emergency power supply.

  • Can be operated in either 230V or 400V mode
  • Electric starter
  • Reliable diesel engine that guarantees many years of trouble-free operation
  • Low vibration design
  • Noise absorbing housing
  • Oil sensor
  • Slow runner



High-performance motor

We have equipped the generator with the highest quality engine. The engine can deliver an impressive 168 kW of power. With such power, you can rely on the generator even in very demanding applications or as a powerful backup power source.

Reliable and long operation

If you're looking for a generator that guarantees a long and steady power supply, then the Hahn & Sohn HDE180RST3 is a great choice. Thanks to its large 530 litre diesel tank, the power station can run for up to 14 hours without refuelling.



Noise and low-vibration cladding

For comfort and safety, we have equipped the generator with high-quality cladding. The metal casing makes it much quieter. The low noise level of the generator and the reduced vibrations will make its operation much more pleasant. In addition, the solid housing protects the machine from damage.



Electric starter

You only need one button to start the electric starter. The electric starter makes it easy to operate the machine.



Practical control panel

The power tool is equipped with an ergonomic control panel. It will inform you about the status of the power generator and allow you to operate it easily. It makes the operation of the machine very comfortable and easy from the first time you plug it in.

Single-phase and three-phase operation

The HDE180RST3 offers both single-phase and three-phase operation. The maximum output for 400V is 198 kVA / 158 kW, nominal output 180 kVA / 144 kW. The power generator is suitable for construction sites, industry or companies.



Automatic Voltage Regulator (AVR)

The Automatic Voltage Regulator (AVR) prevents voltage fluctuations. This prevents possible damage to the connected equipment. You can therefore safely connect even sensitive devices or appliances that are more difficult to start.



Sockets

The HDE180RST3 does not include sockets as standard, but is equipped with cables that can be plugged directly into the mains. If required, the control panel can be customised and selected sockets can be installed.



Oil sensor

The power unit has an oil sensor that will tell you in time that the oil is running low and needs to be topped up or changed. This will prevent possible engine damage.



Secure

The Hahn & Sohn HDE180RST3 power generator is a professional and reliable power generator that has passed all the necessary tests and certifications, including emission ones.



Operations manual

Additional parameters

Category: Industrial generators
Weight: 2621 kg
Höchstleistung: 220 kVA / 176 kW
Nennleistung: 200 kVA / 160 kW
Nennstrom: 289 A.
Ausgangsspannung: 230V/400V
Frequenz: 50 Hz
Tankvolumen: 350 l
Laufzeit bei 100% Belastung: 8,5 h
Kraftstoffverbrauch bei 100 % Belastung: 41 l l/h
Kraftstoffverbrauch bei 75 % Belastung: 31 l /h
Kraftstoffverbrauch bei 50 % Belastung: 20,6 l/h
Maße: 3130x1120x1800 mm
Motortyp: Diesel, Vier-Zylinder, Direkteinspritzung, wassergekühlt
Motorleistung: 180 kW
Motordrehzahl: 1500 /min
Die Anzahl und Zylinderanordnung: 4 / in einer Reihe
Stromversorgungssystem des Motors: Direkteinspritzung
Abgasstrom: 27,2 m³ / min
Abgastemperatur: 600 °C
Spannungsregler: elektronisch - AVR
Spannungsstabilität: ± 1 %
Volumen des Öltanks: 15-17,5 l
