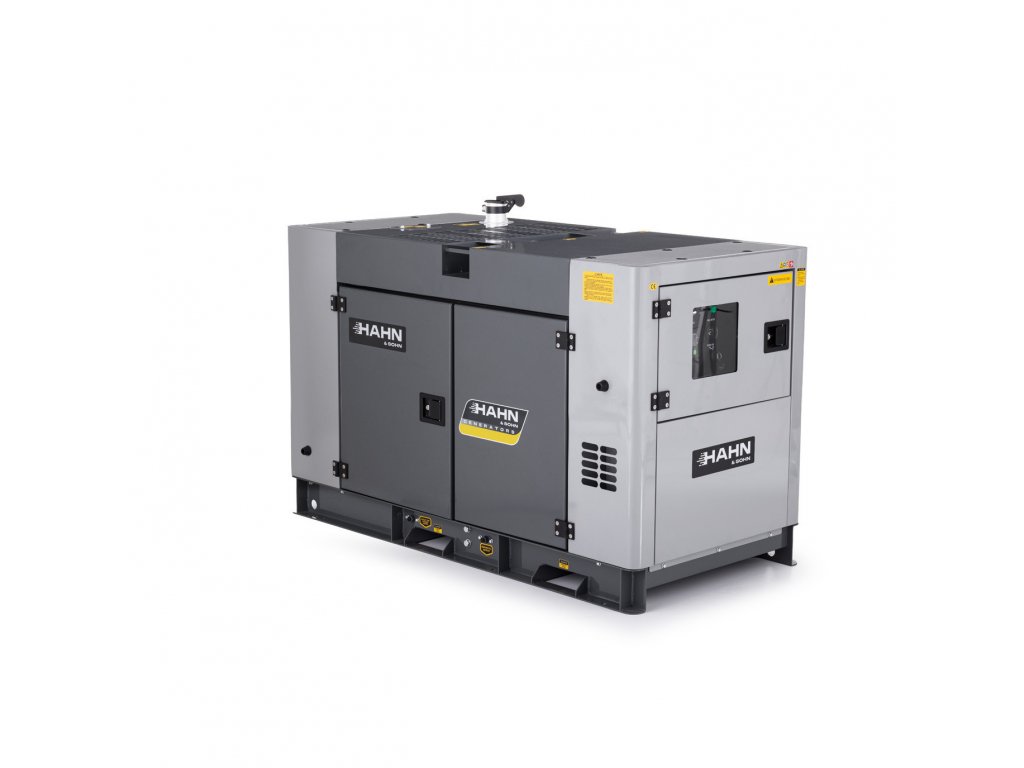

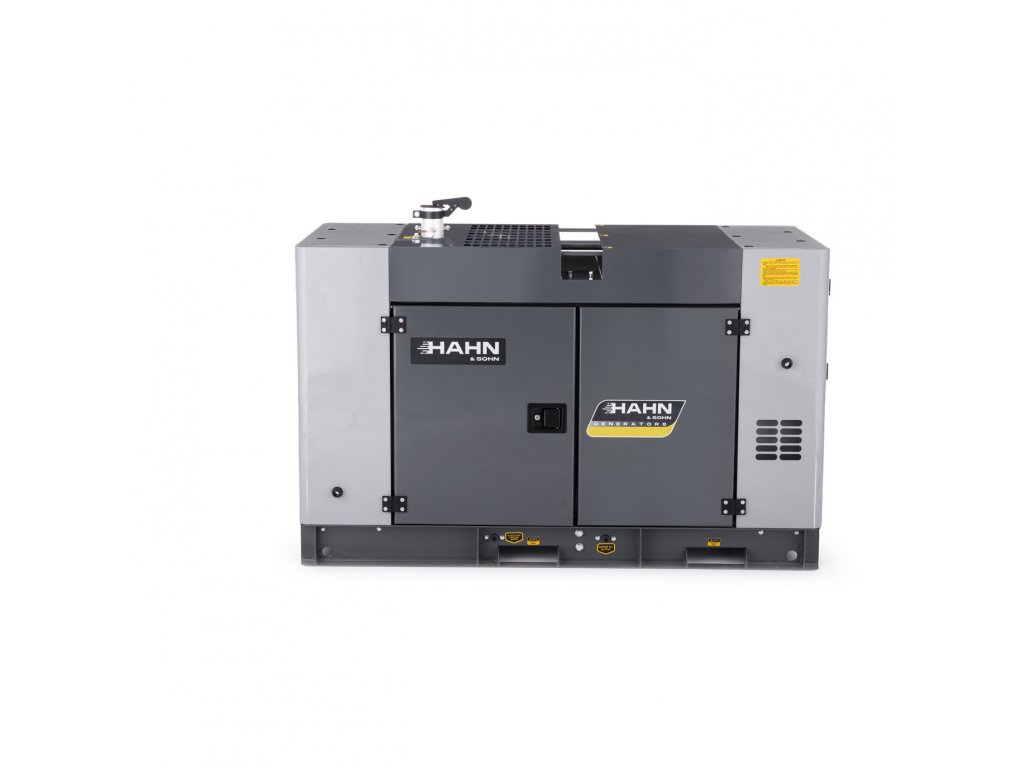

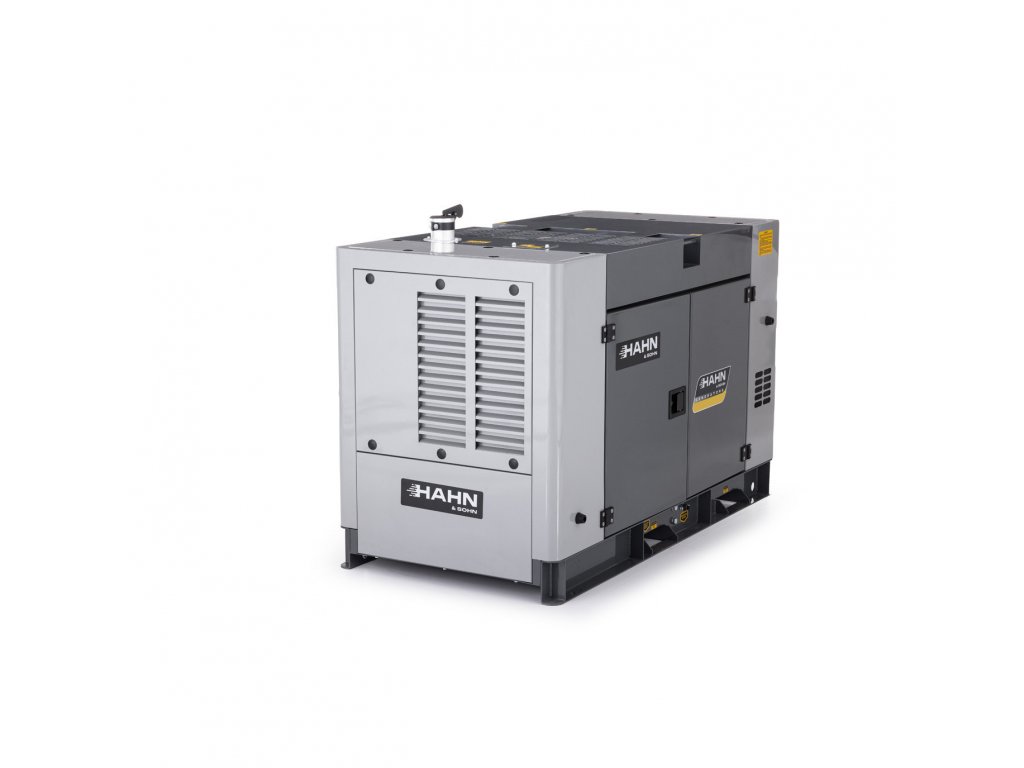

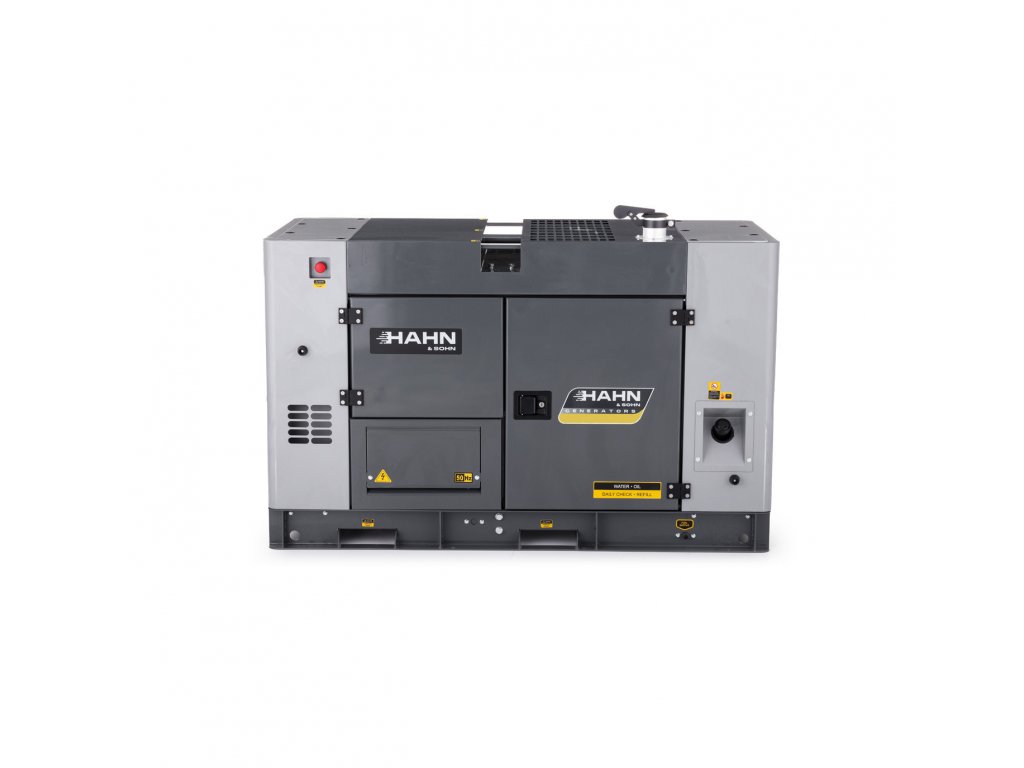

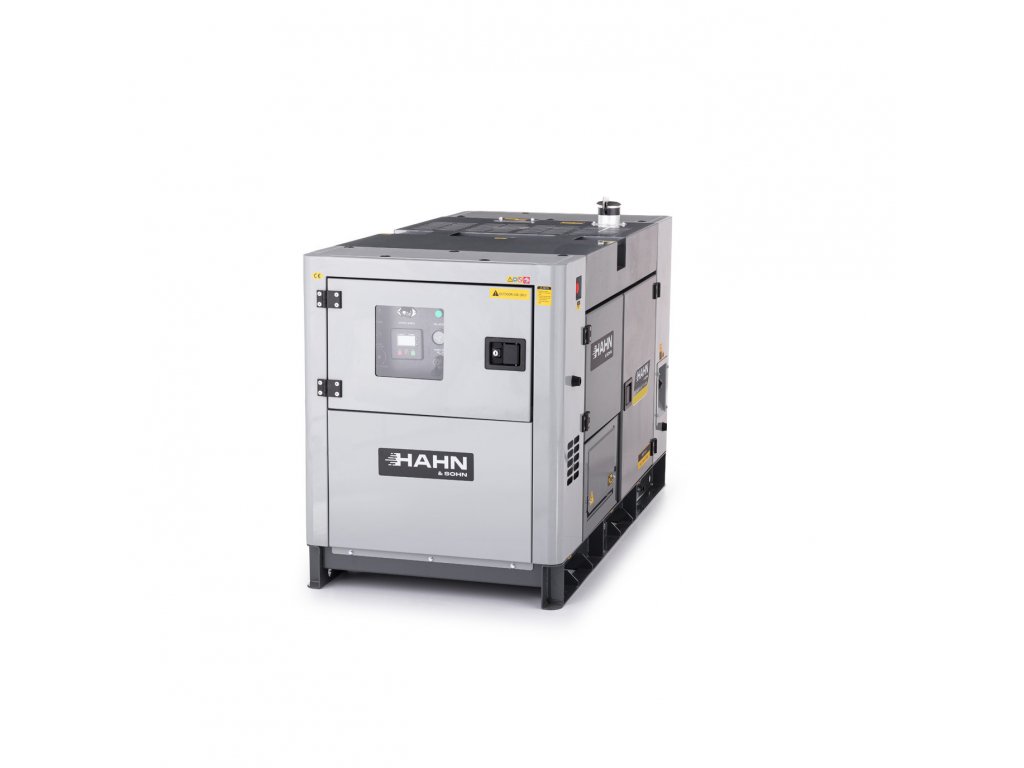

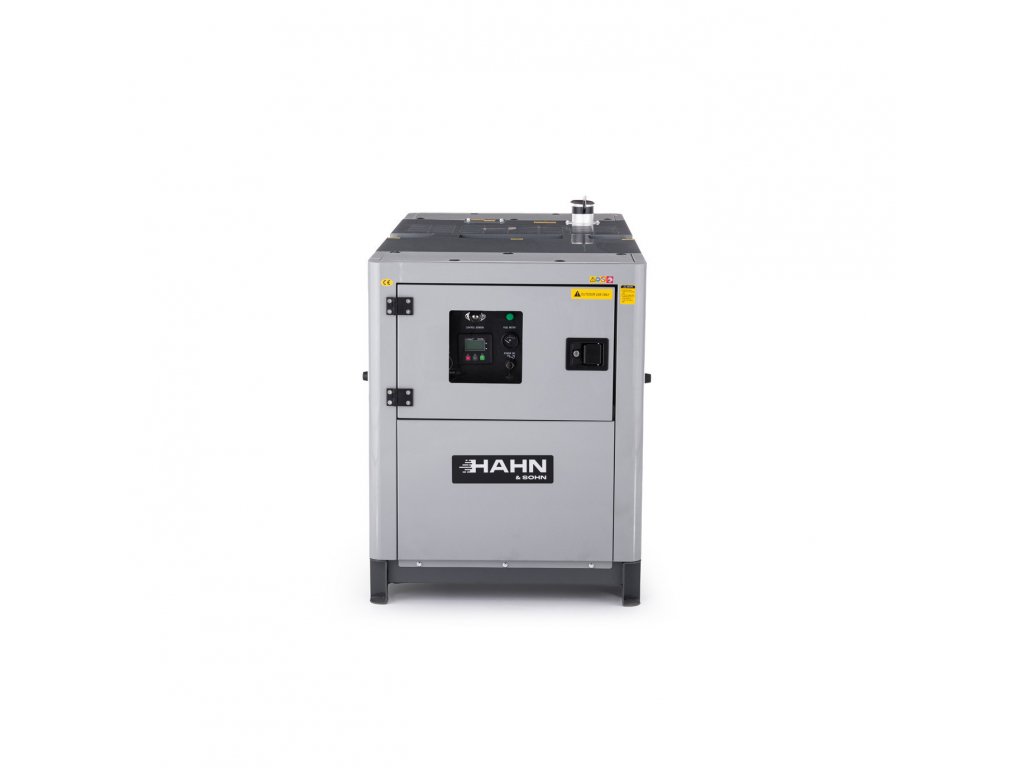

Diesel Generator HDE80SS3 Super Silent
- Maximum power: 82,5 kVA / 66 kW
- Nominal power: 75 kVA / 60 kW
- Output voltage: 230 V / 400 V
- Nominal current: 108,7 A
Hahn & Sohn Diesel Generator HDE80SS3
The Hahn & Sohn HDE80SS3 is a modern diesel generator that will impress you with its strong performance, reliability and trouble-free operation. The Hahn & Sohn HDE80SS3 is versatile for construction sites, events, in agriculture or industrial applications. The generator is also suitable for emergency power supply.
- Can be operated in either 230V or 400V mode
- Electric starter
- Reliable diesel engine that guarantees many years of trouble-free operation
- Low vibration design
- Noise absorbing housing
- Oil sensor
- Slow runner

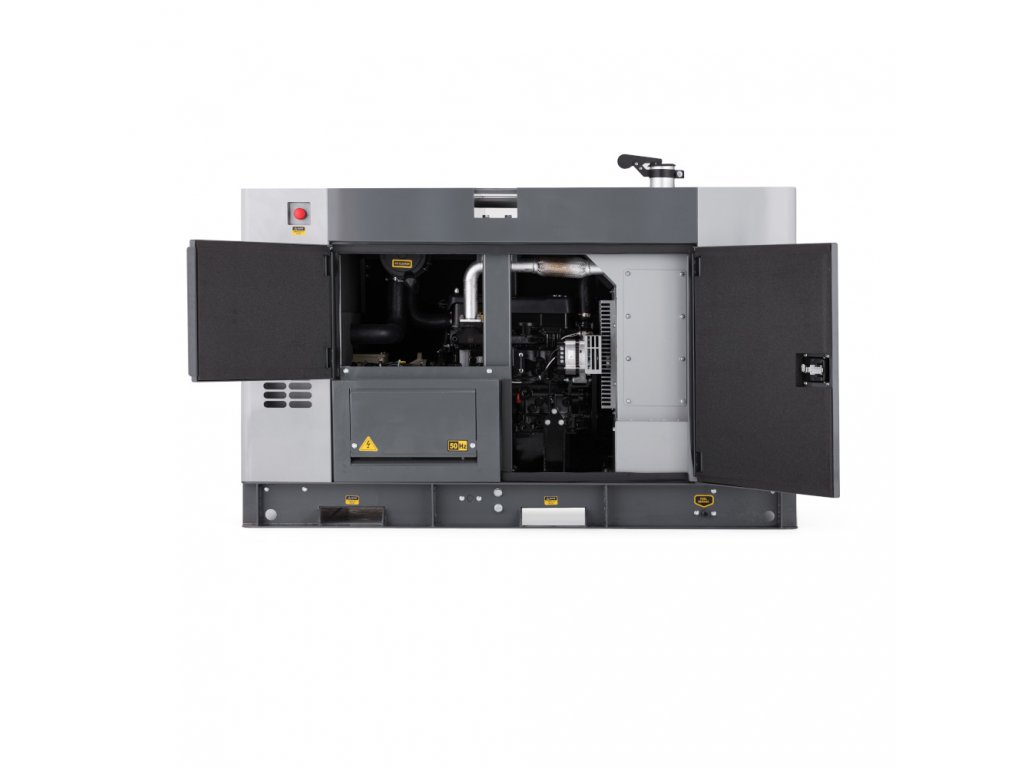

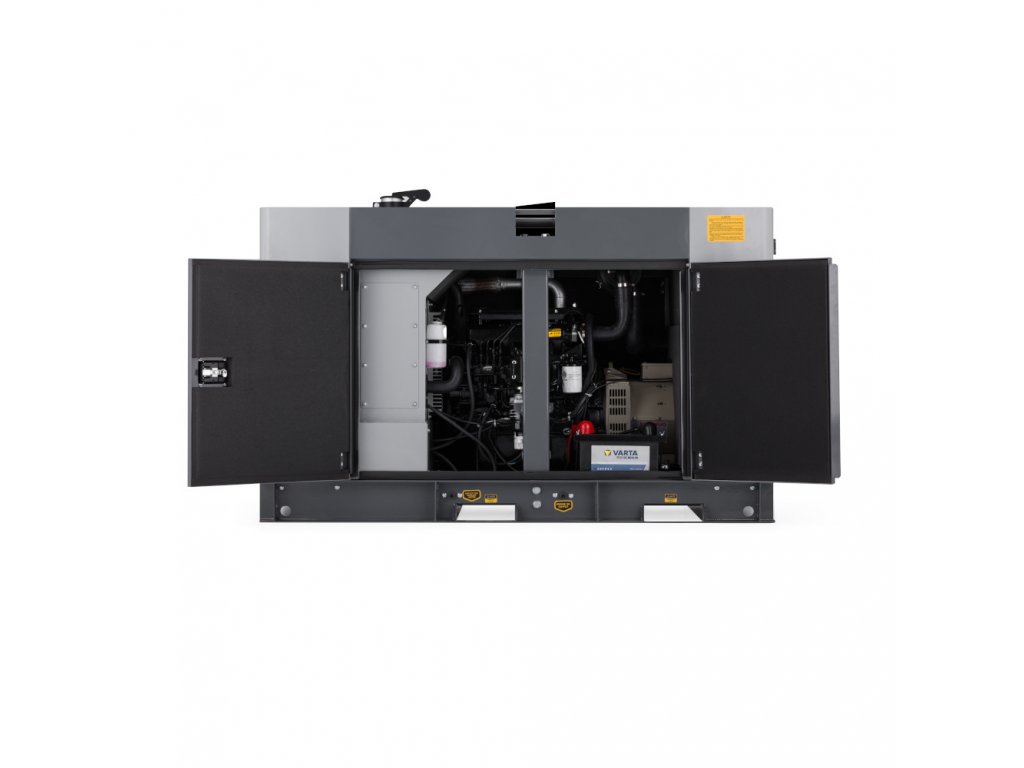

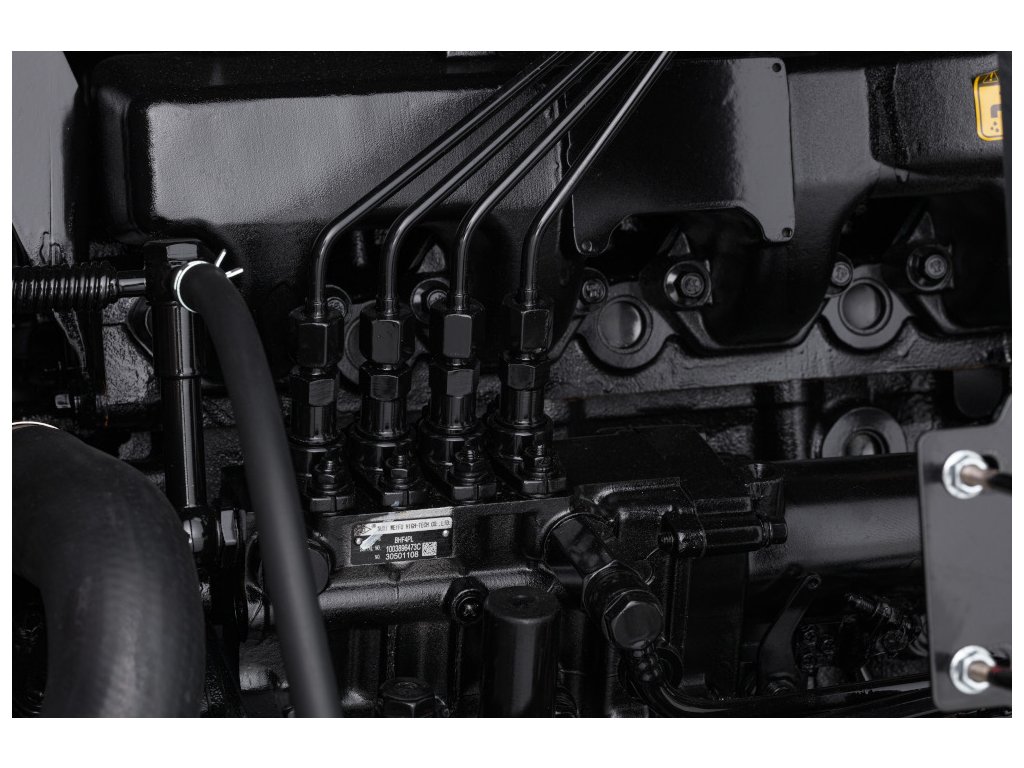

High-performance motor
We have equipped the generator with the highest quality engine. The engine can deliver an impressive 80 kW of power. With such power, you can rely on the generator even in very demanding applications or as a powerful backup power source.
Reliable and long operation
If you're looking for a generator that guarantees a long and steady power supply, then the Hahn & Sohn HDE80SS3 is a great choice. Thanks to the large 164 litre diesel tank, the central unit can run for up to 13 hours without refuelling.

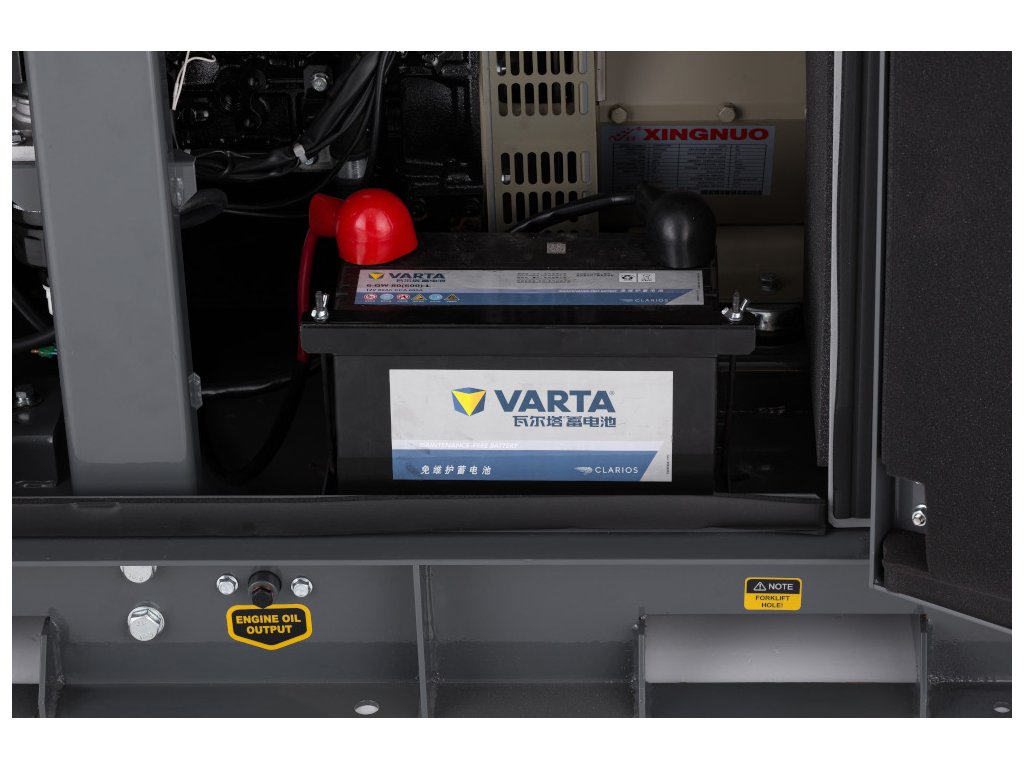

Electric starter
You only need one button to start the electric starter. The electric starter makes it easy to operate the machine.
Single-phase and three-phase operation
The HDE80SS3 offers both single-phase and three-phase operation. The maximum output for 400 V is 82,5 kVA / 66 kW, the nominal output is 75 kVA / 60 kW. The power generator is suitable for construction sites, industry or companies.
Automatic Voltage Regulator (AVR)
The Automatic Voltage Regulator (AVR) prevents voltage fluctuations. This prevents possible damage to the connected equipment. You can therefore safely connect even sensitive devices or appliances that are more difficult to start.
Noise-proof and low-vibration cladding
For comfort and safety, we have equipped the generator with high-quality cladding. The metal cladding makes it much quieter. The 51 dB of the generator and the reduced vibrations will make its operation much more pleasant. In addition, the solid housing protects the machine from damage.
Secure
The Hahn & Sohn HDE80SS3 power generator is a professional and reliable power generator that has passed all the necessary tests and certifications, including emission ones.

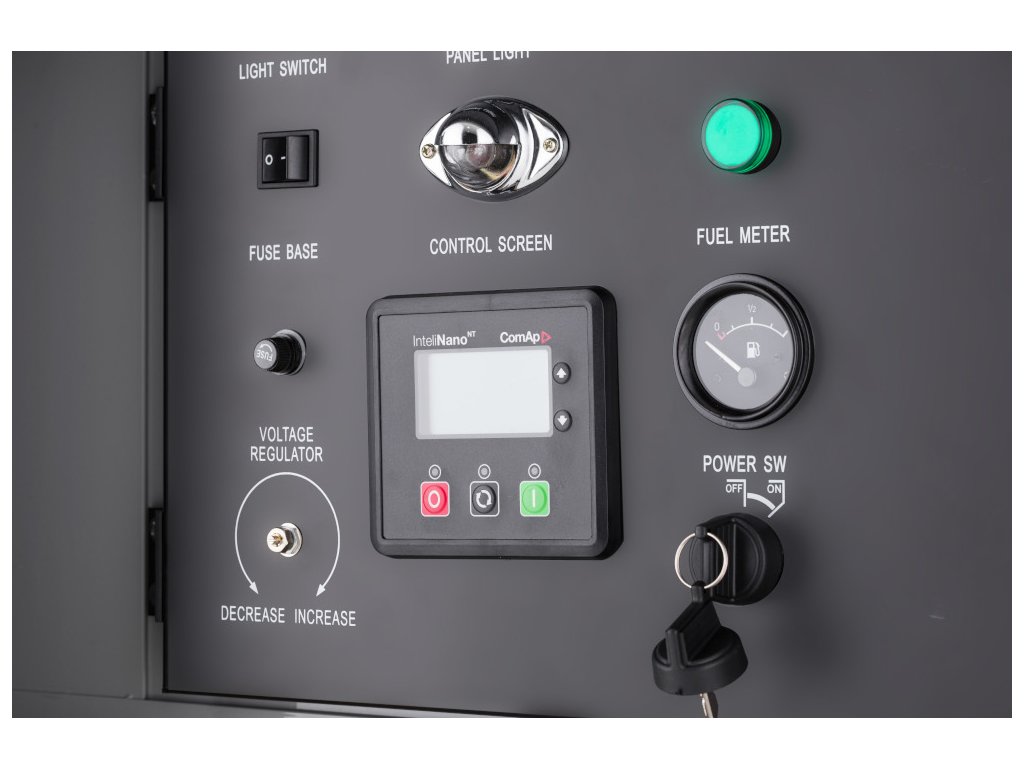

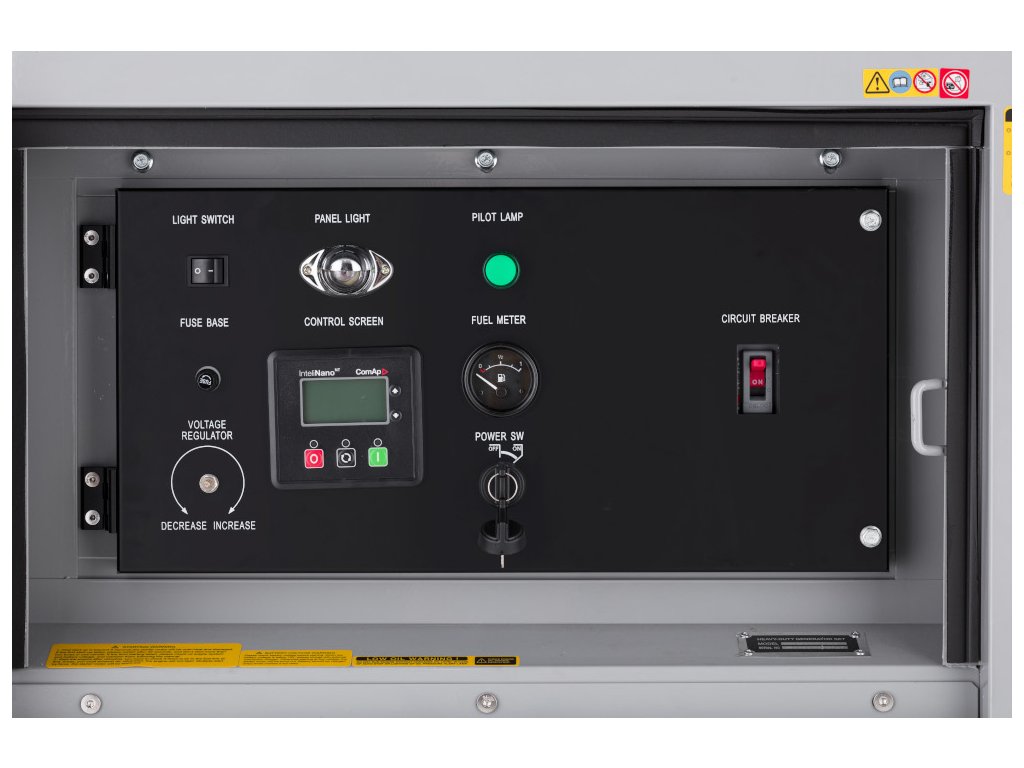

Practical control panel
The power tool is equipped with an ergonomic control panel. It will inform you of the status of the power tool and allow you to operate it easily. It makes the operation of the machine very comfortable and easy right from the first time you plug it in.
Sockets
The HDE80SS3 does not include sockets as standard, but is equipped with cables that can be plugged directly into the mains. If required, the control panel can be customised and selected sockets can be installed.
Additional parameters
| Category: | Industrial generators |
|---|---|
| Warranty: | 2 years |
| Weight: | 1440 kg |
| Frequenz (Hz): | 50 |
| Höchstleistung (400V/230V): | 82,5 kVA / 66 kW |
| Nennleistung (400V/230V): | 75 kVA / 60 kW |
| Ausgangsspannung: | 400V/230V |
| Nennstrom: | 108,7 A |
| Drehzahl: | 1500 U/Minute |
| Bedienfeld: | COMAP |
| Spannungsregelung: | AVR |
| Tankvolumen: | 105 l |
| Motor: | WEICHAI |
| Motorbezeichnung: | WP4.1D80E200 |
| Motortyp: | 4-Zylinder, Direkteinspritzung, wassergekühlt |
| Motorleistung: | 72 kW |
| Geräuschpegel Lpa (7m)/Lwa, dB: | 53 dB |
| Starter: | Elektrisch |
| Laufzeit bei 100% Belastung: | 7,8 h |
| Kraftstoffverbrauch bei 100 % Belastung: | 20,94 l/h |
| Kraftstoffverbrauch bei 75 % Belastung: | 16,27 l/h |
| Kraftstoffverbrauch bei 50 % Belastung: | 12,59 l/h |
| Volumen des Öltanks: | 17 l |
| Menge der Kühlflüssigkeit: | 25,9 l |
| Art des Kühlmittels: | Antifreeze -38 °C |
| Maße: | 2350 x 1050 x 1300 mm |
| Gewicht: | 1150 kg |
